Description
[Multifunction]

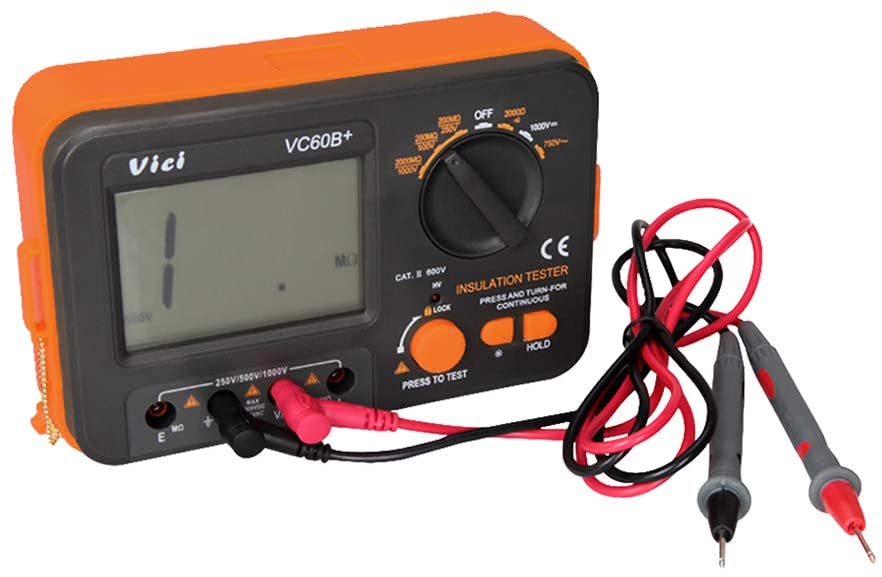

Test lead. Full function protection, anti high voltage circuit design. Strong anti-magnetic and anti-interference function. High voltage and short circuit input alarm.
[Easy to Use]

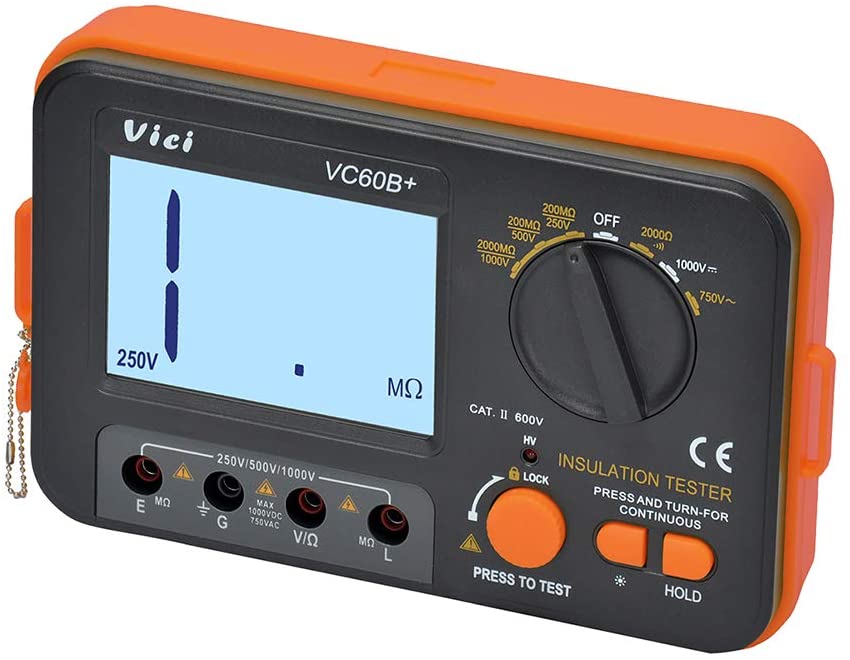

VC60B+ is an accurate, reliable, and easy-to-use insulation resistance tester. Drive symbol display, easy to use.
[LCD Screen]

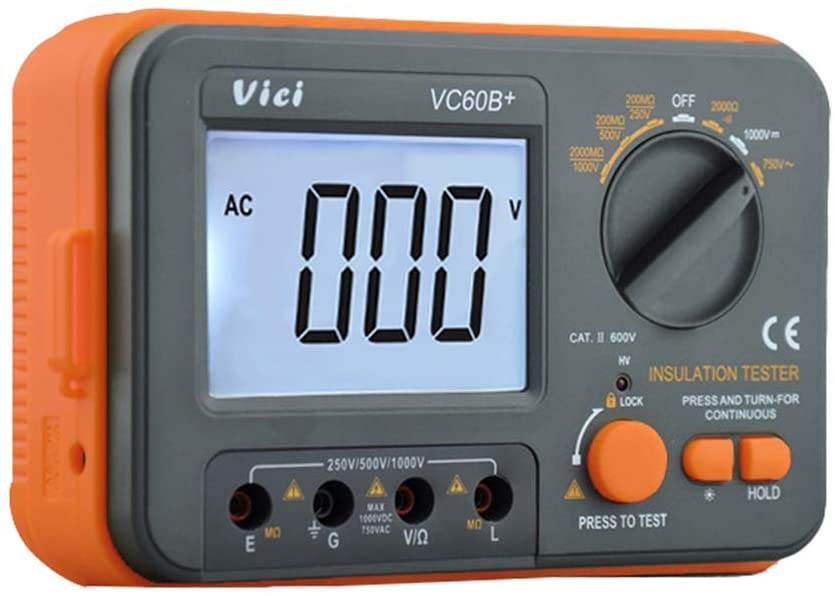

Large LCD screen, easy to read. LCD backlight: Apporx.10Sec.
[Power Supply]
1.5V*6pcs AA battery, or DC 9V external power supply (Note: battery not included)
General Specifications
1) LCD Size: 3 1/2 LCD Screen, Max. Screen 1999
2) Upper Range Indication: Displays “1” when the upper limit is exceeded
3) Sampling rate: approx. 3 times/sec.
4) Low Battery Indication: The LCD display displays a low battery symbol.
5) Additional temperature coefficient: 0.15 x specified accuracy/C (<18 Cor >28°C)
6) <2000m
7) Operation environment: indoor use, pollution grade II, temperature -15 C-55 C, relative <humidity 75% RH.
8) Storage environment: temperature -40 C-60 C, relative <humidity 90% RH
9) Power supply: AA (1.5V) x6 battery (or external 9V DC adapter).
10) Power consumption: before any measurement, the power <consumption 300mW
11) Fuse: 100mA/60V resettable fuse 12) Dimensions: 175 (L) x 110 (W) x 62.5 (D) mm
13) Weight: 580g (including battery)
Technical data
-Accuracy: ±(a% rdg+ less effective digits Optimal environment for accuracy: temperature (23±5)°C, relative <humidity 75%
-Test Voltage: 250V±10% || 500V±10% || 1000V±10%
-Range: 200M ohms || 200M ohms || 200M ohms-Accuracy
: ±(4.0%reading+2)
-Short circuit current: 1.7mA || 1.7mA || 1.4 mA-Medium
resistance (make sure the voltage at terminals E and L is above the specified lower limit of resistance at 90% of the test voltage): 2Mohm || 2Mohm || 5Mohm-Terminal

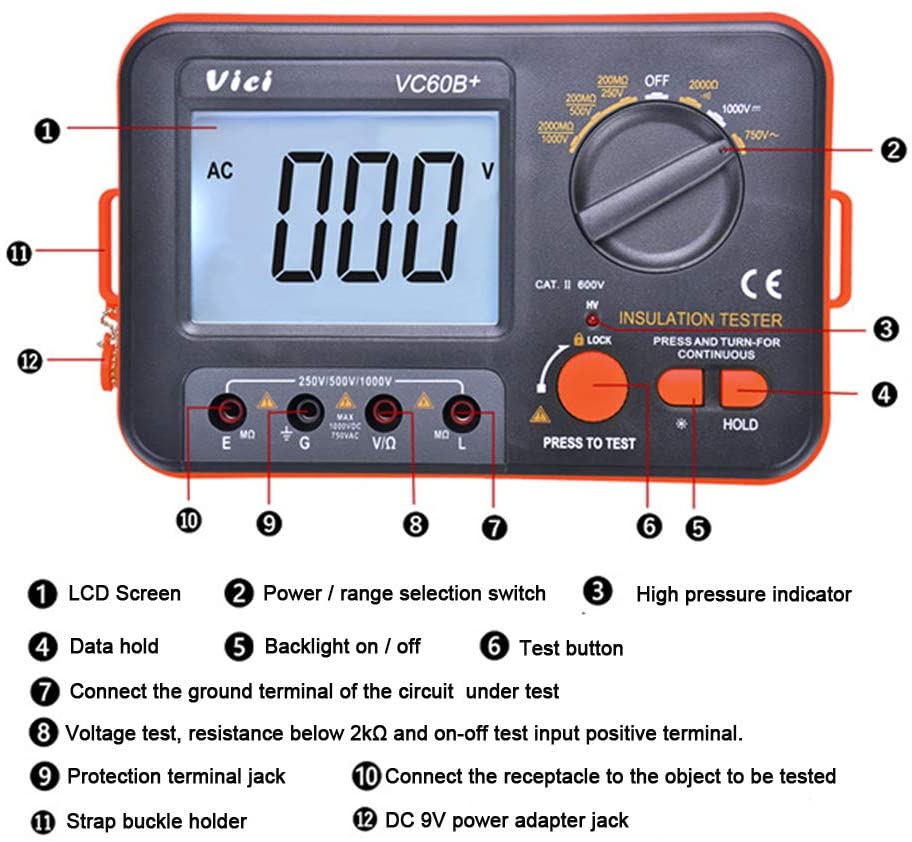

position: E (Mohm), L (Mohm), G (Earth)
-Rank || Precision || Resolution || Input
Impedance-DC1000V || ± (0.5% Reading+6) || 1V || 1Mohm-AC750V
|| ± (1.0%reading+6) || 1V || 1Mohm-2Kohmios
|| ± (0.8% Reading+6) || 1 ohm || 1mA
Current Test-Continuity Test: <50 Ohm Audible Alarm, 1 mA
Test Current-Terminal: V/ohm(IN+), G(IN-)
