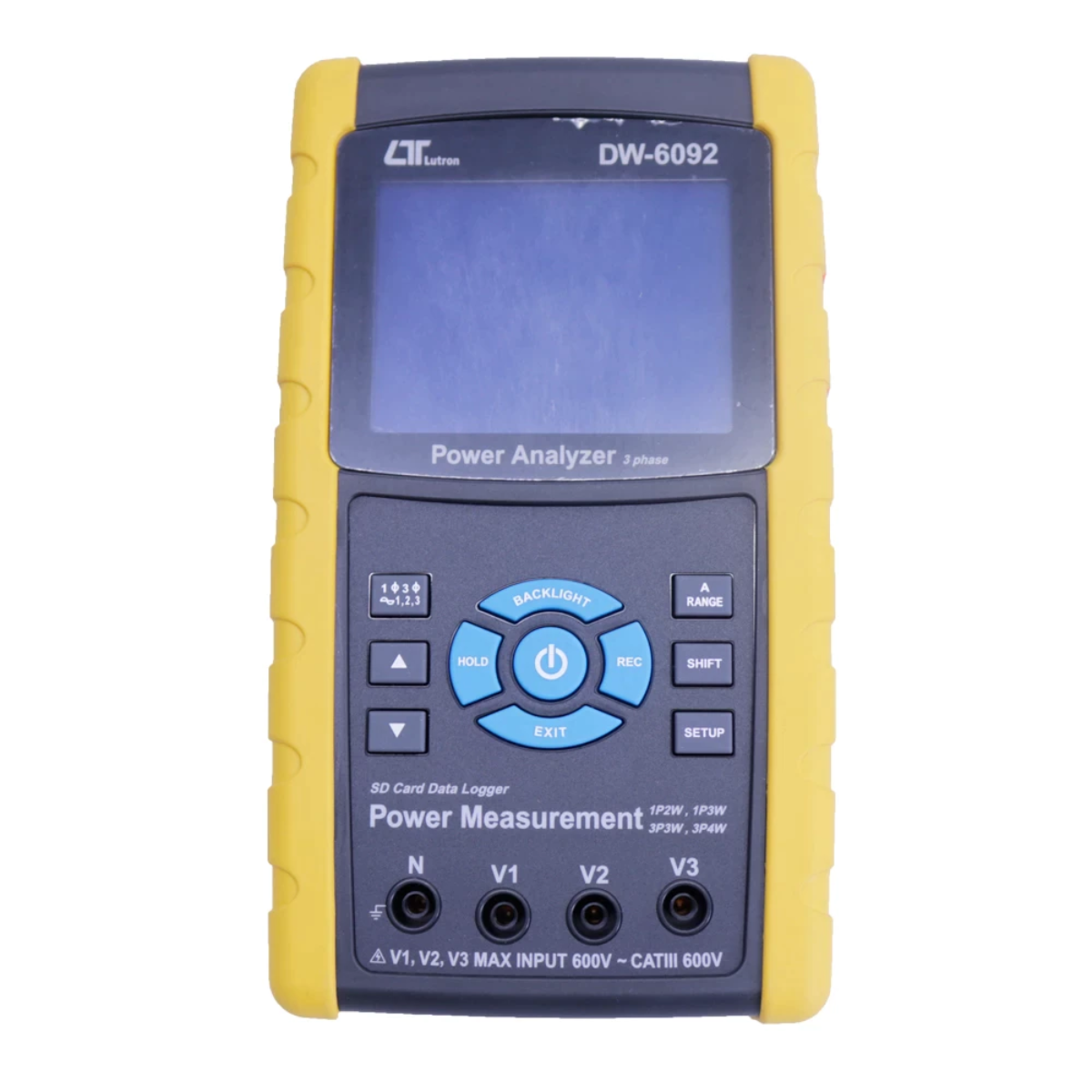

Description
Features:
* 3 phases / 4 wires, 3 phases / 3 wires, 1 phase / 2 wires, 1 phase / 3 wires
* True RMS measurement for ACA, LCA.
* Actual power: W, KW, MW.
* VA, KVA, MVA, VAR, KVAR, MVAR.
* PF (power factor), phase angle.
* KWH, KVAH, KVARH, PFH.
* ACA: 0.1 A at 2000 A, ACV: 10.0 at 600.0 V.
* Real-time data recorder with SD card.
* RS232/USB computer interface.
* Displays all electrical waveform measurement.
SPECIFICATIONS-Monitor
* LCD screen size: 81.4 x 61 mm (3.2 x 2.4 inches)
* Dot matrix LCD (320 X 240 pixels) with backlight.
-Measurement
*AC*
AC*
AC WATT (actual power), AC WATT (apparent power), AC WATT (reactive power)
*Power factor
*Phase
angle*Frequency
-Cable
connections*1P/2W, 1P/3W, 3P/3W, 3P/4W.
-Voltage
ranges*10 ACV to 600 ACV, automatic range
-Current ranges
*0.2 ACA to 1200 ACA,
*Auto range/manual range.
-Safety
standard*IEC1010 CAT III 600 V.
-ACV
input impedance*10 megaohms.
-Range
selection*ACV: automatic
range*ACA: automatic range and manual range.
-Clamp
frequency response*40 Hz to 1 KHz.
-Specs. Frequency tested
*45 to 65 Hz.
-Overload
protection*ACV: 720 ACV rms
*ACA: 1300 ACA with clamp probe and CP-1200
-Excess
indicator*Show “OL”.
-Below the indicator
*Show “UR”.
-Data Retention
*Freeze screen reading.
-Data
Logging*SD Card Logging
-Sampling
time*Approx. 1 second.
-On / off
*Manual shutdown by push button.
-Analysis for three-phase multiphase system, 1P/2W, 1P/3W, 3P/3W, 3P/4W
-Voltage and current are the true RMS.
-Actual power measurement (KW MW GW).
-Apparent power measurement (KVA MVA GVA).
-Reactive power measurement (KVAR, MVAR, GVAR).
-Watt-Hour (WH SH QH – PFH).
-Power factor PF) Phase angle (o).
-Voltage measurement range: 10 to 600 ACV
-Current measurement range: 0.2 A to 1200 ACA.
-Programmable CT ratio (1 to 600) and PT ratio (1 to 1000).
-ACV input impedance is 10 megaohms.
-Safety Standard: IEC 1010, CAT III 600V
-Built-in clock and calendar, real-time data logging with SD memory card, set sampling time from 2 to 7200 seconds. Just insert the SD card into the computer, I can download all the measured value with the time information (year/month/data/hour/mimute/second) directly into Excel, then the user can do the additional data analysis by themselves.
