Description

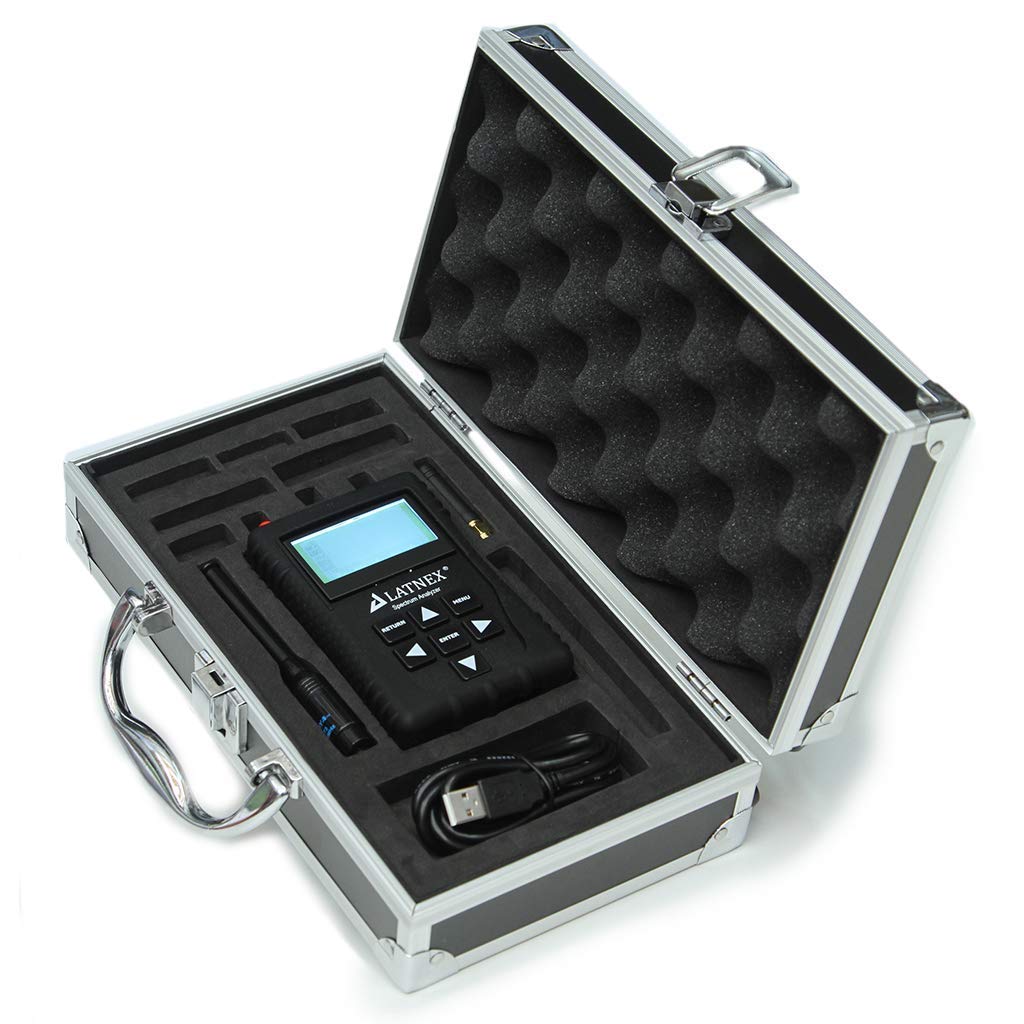

The LATNEX SPA-3G is a portable digital spectrum analyzer, a very affordable tool to work in all popular frequency bands. It is based on a highly integrated frequency synthesizer and a balanced dual mixer that offers high performance and compact size.
It has been designed to be used both outdoors and indoors and can be connected to a PC for additional functionality.
It offers coverage for the most commonly used communication frequency range in modern communication technologies, including WiFi, Bluetooth, wireless audio and video, LTE, GSM, GPRS, satellite, CATV, DTV, etc.
Specifications-Spectrum
analyzer mode with Peak Max and Hold, Normal, Overwrite and Averaging
modes-High capacity Lipo for 16hs+ continuous operation, USB
rechargeable-Broadband coverage at all popular RF frequencies, from 15 MHz to 2.7 GHz. This includes very interesting frequency areas such as 2m HAM radio, all VHF and UHF, FM radio, GPS, WiFi and WiMax, Bluetooth, etc.
-Frequency band: 15-2700 MHz
-Frequency range: 112 KHz – 600 MHz
-Windows client for PC is compatible with Windows XP/Vista/Win7 32-bit and 64-bit
-Amplitude Resolution: 0.5dBm
-Dynamic range:

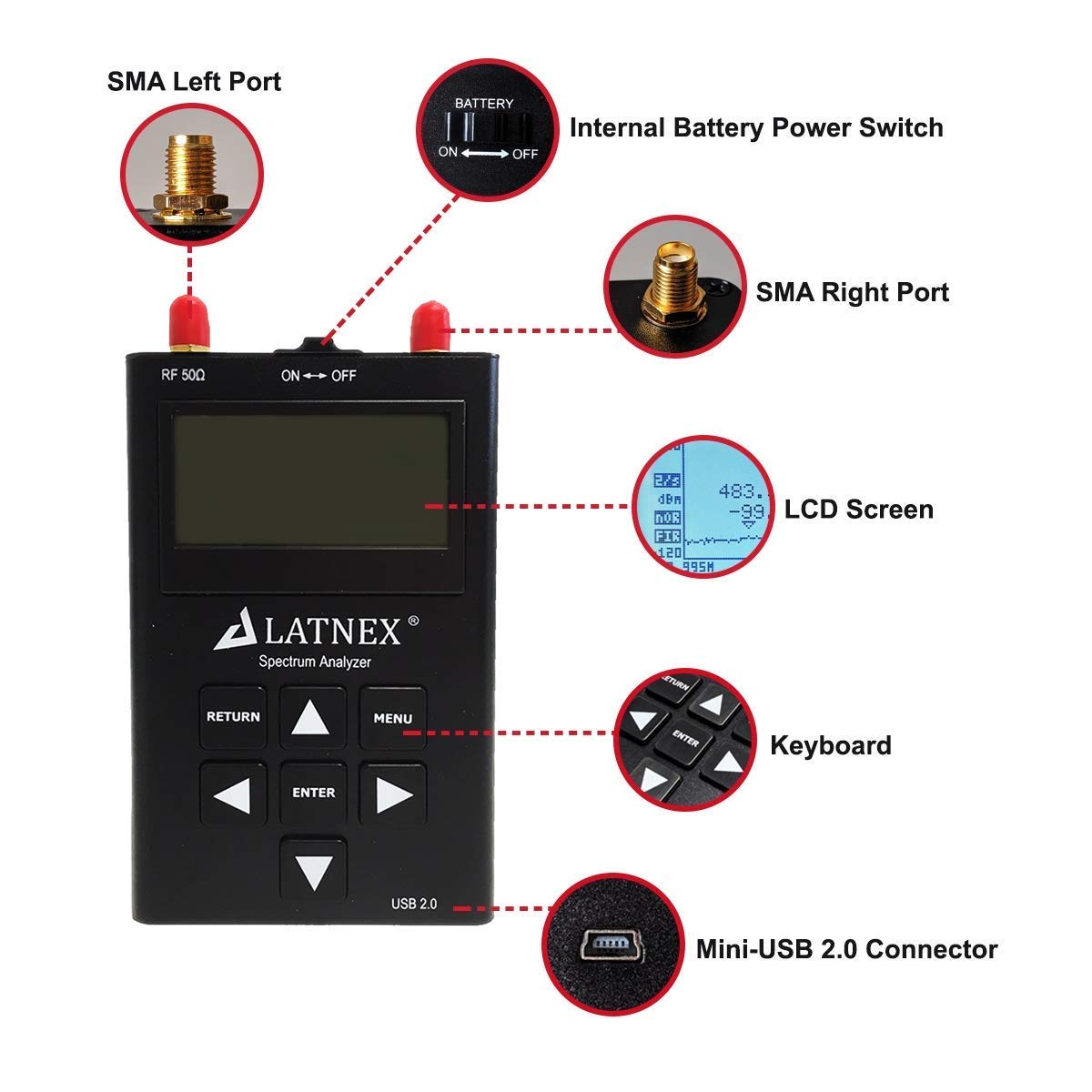

–Left SMA port (WSUB1G): -115dBm to -15dBm
–Right SMA port (WSUB3G): -110dBm to -10dBm
-Absolute Maximum Input Power (No Damage):
–Left SMA port (WSUB1G): +5dBm
–Right SMA port (WSUB3G): +30dBm
-Average Noise Level (Typical): -115dBm
-Frequency stability and accuracy (typical): +-10 ppm
-Amplitude and accuracy stability (typical):
–Left SMA port (WSUB1G): +-3dBm
–Right SMA port (WSUB3G): +-6dBm
-Frequency resolution: 1Khz
-Resolution Bandwidth (RBW): Auto 3Khz to 600Khz
