Description

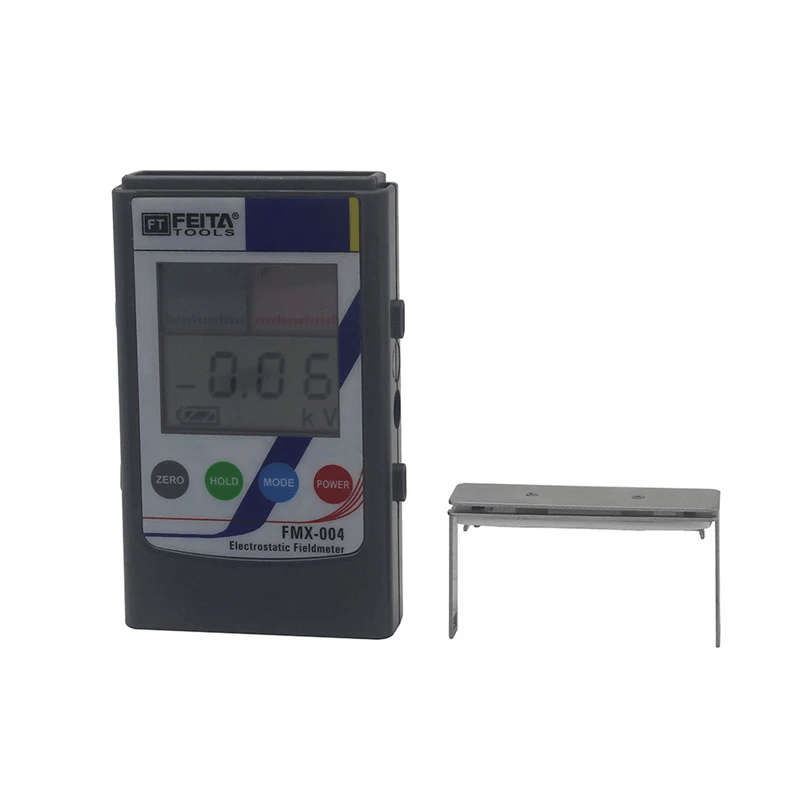

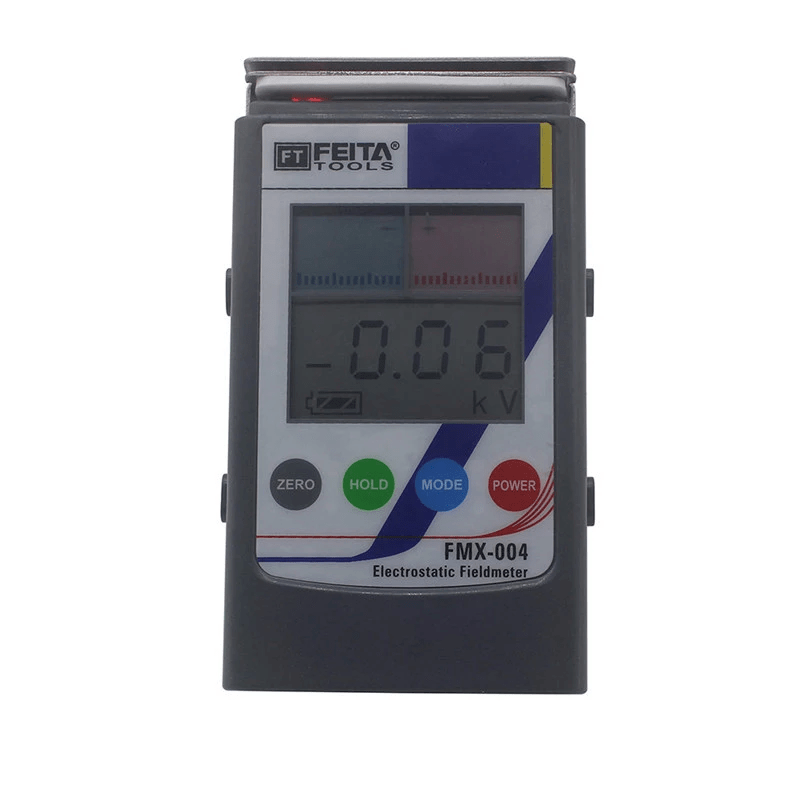

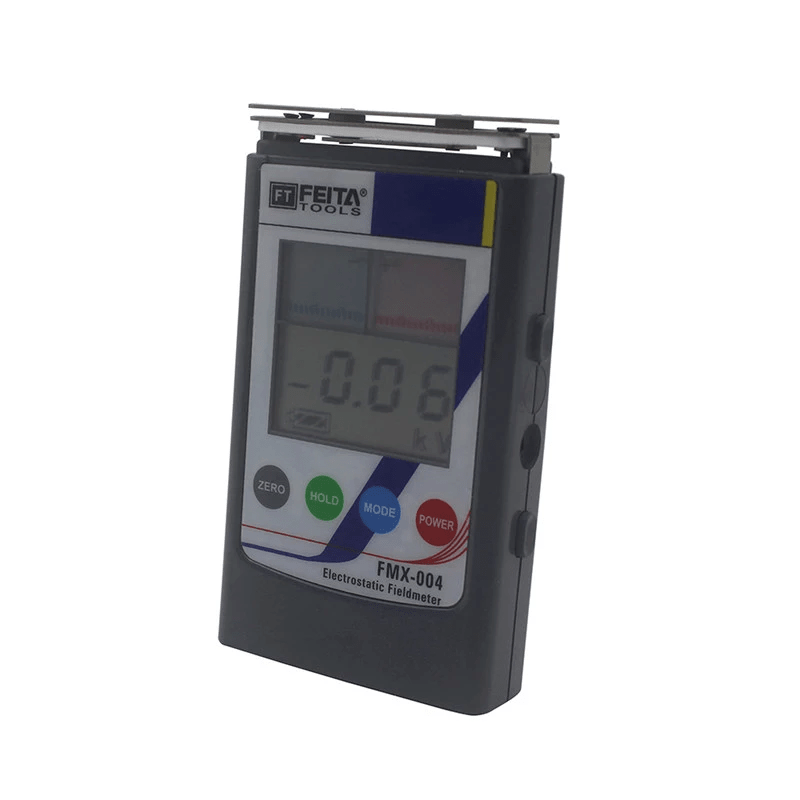

FEITA FMX-004 electrostatic field meter ESD test meters Simco
antistatic measurement meter The FMX-004 is a practical compact and pocket-sized electrostatic field meter. With this field meter you can measure and store the field strength and polarity. It allows you to take measurements in awkward places. The correct measuring distance is displayed with two integrated LEDs. The electrically conductive plastic housing with a side-mounted grounding ensures accurate measurements. The single bi-color display shows the measured value both numerically and graphically. The battery status is displayed on the screen.
Characteristics:
1. The measurement range is +/-20 kV;
2. Easy to read, easy to use;
3. Light weight, compact design;
4. Automatic shutdown after five minutes on a loose end;
5. Two LED guide lights to make sure the measuring distance is the standard 25mm position;
6. The outer materials are conductive and add a grounding buckle for accurate measurement;
7. A clear digital and bar graph can be displayed, and the light plate can show the illumination in the dark situation;
8. Closed ion balance measuring plate, to measure the remaining voltage of the ion generator, the measuring range is +/-200V;
9. It can send a “beep” sound when the digital is above the measurable range.
Specifications:
-Static voltage: 0-±1.49KV (min.), ±1.0KV-±22KV (max.)
-Balance: 0-±220V-Test
distance: 25 mm ± 0.5 mm (distance between the tested elements and the LED)
-Reaction time: less than 5 times/second with data
update-Accuracy: ±10%
Power supply: 9V (NOT INCLUDED)-Weight
: 138g (not including battery)
-Size: (Length*Width*Height) 123*73*25mm-Color
: Gray-Material
: ABS Plastic Anti-Static
