Description

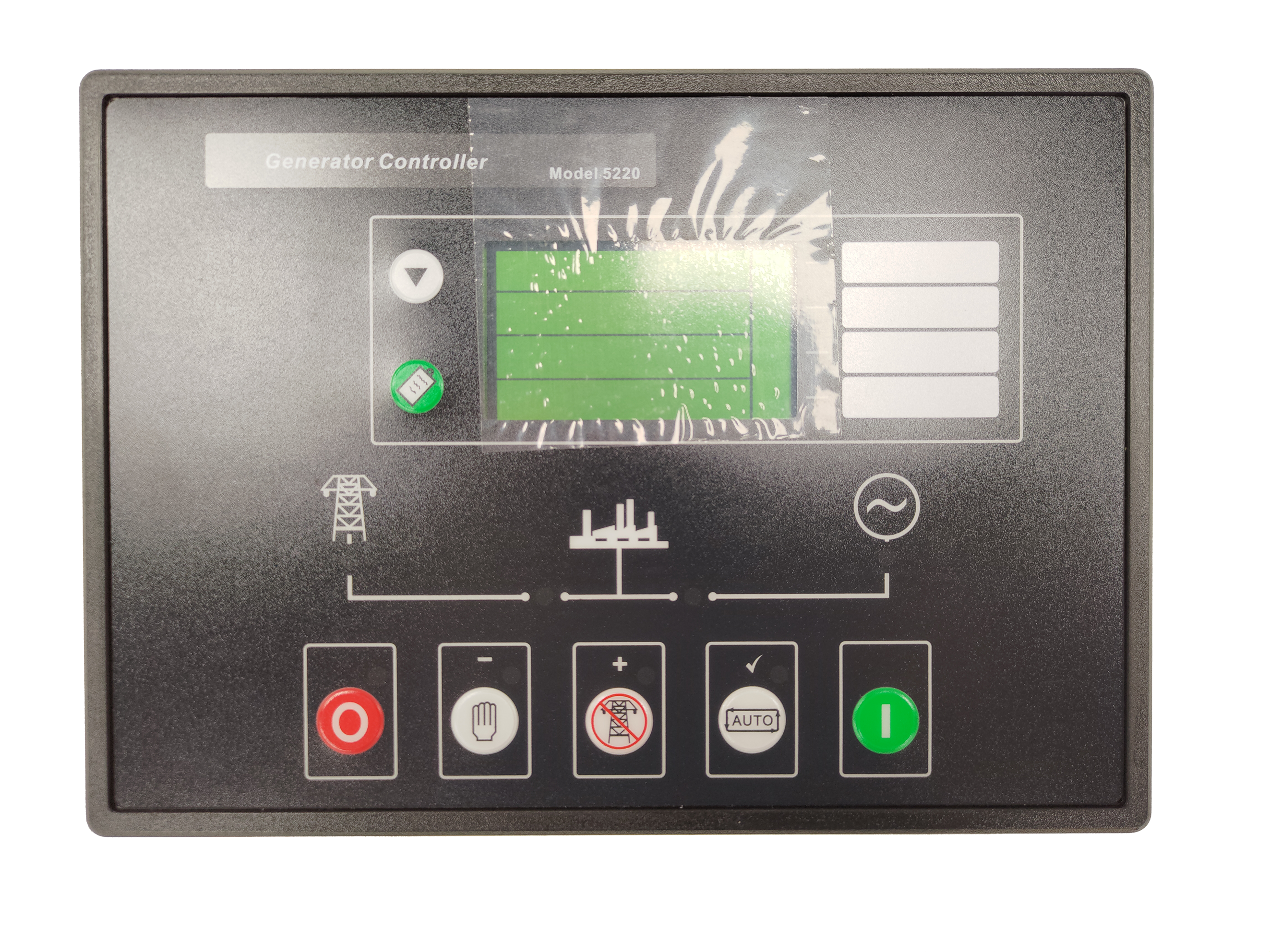

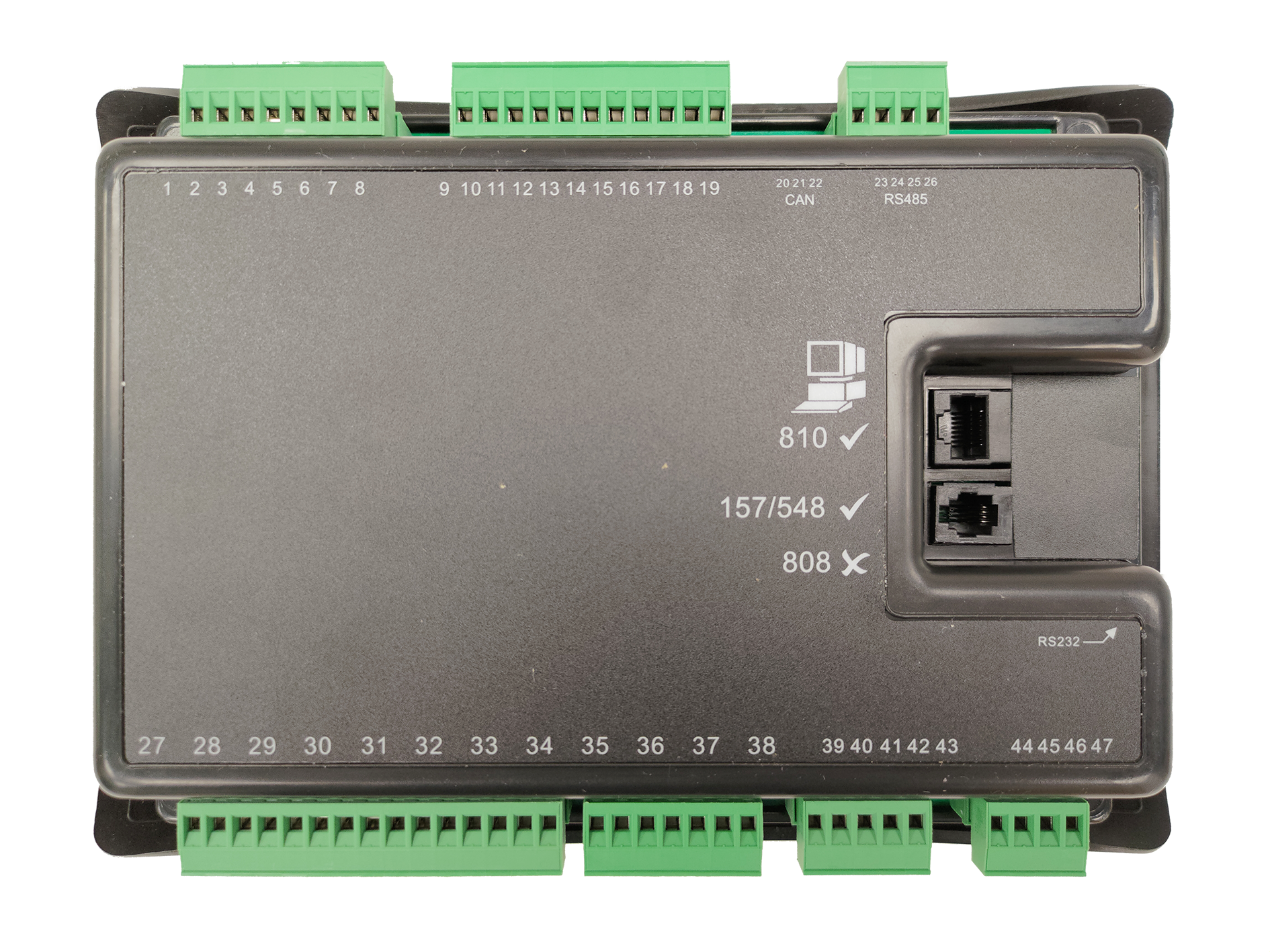

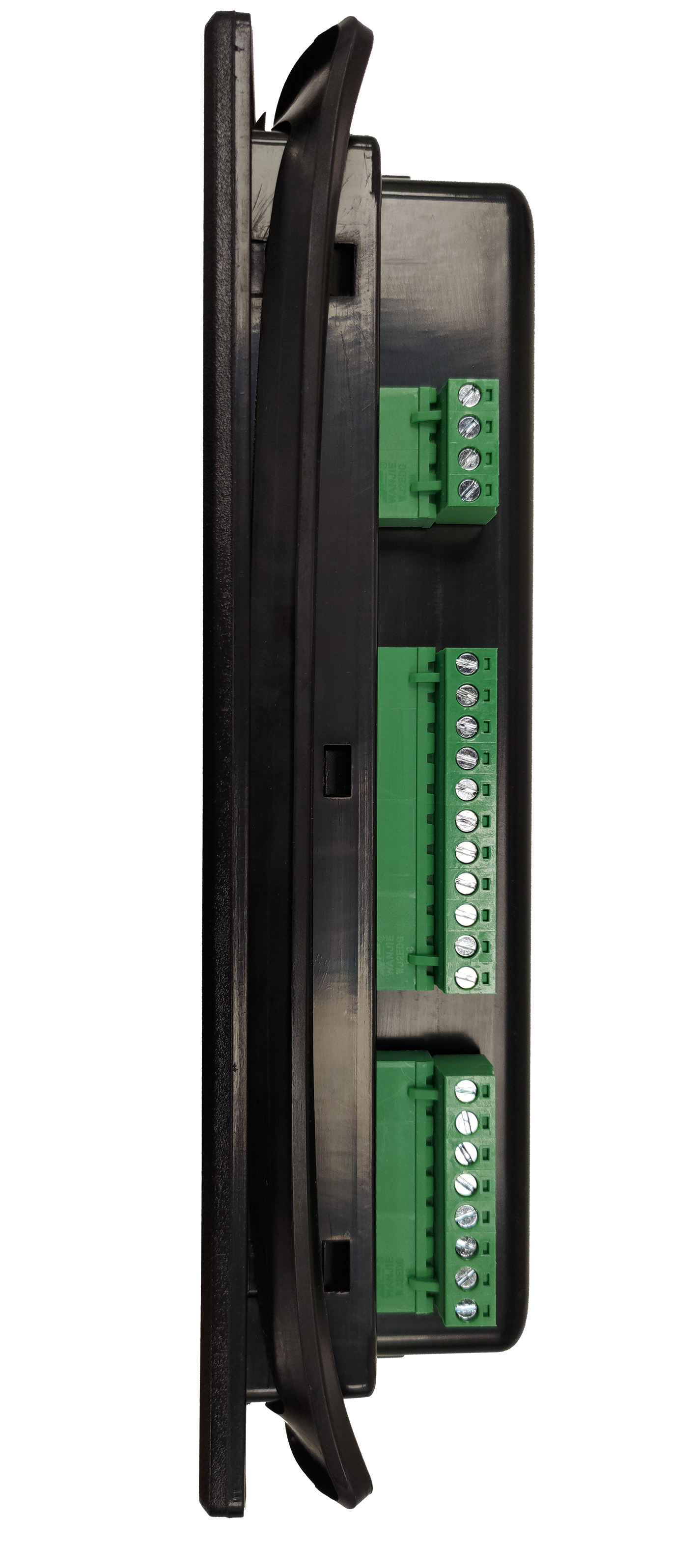

The DSE5220 is an automatic network fault monitoring module designed to automatically start and stop diesel and gas generator sets that include non-electronic engines. The module also provides excellent motor protection and monitoring features. The module has the ability to monitor low speed, overspeed, load failure, emergency stop, low oil pressure, high engine temperature, failure to start, failure to stop, generator under/overvoltage, overcurrent, generator under/overfrequency, DC battery under/high voltage, low fuel alarm and speed detection signal loss. The module displays fault conditions on the LCD screen and through the LED indicators on the front.
Characteristics:
-Automatic start
-Automatic network fault detection (utility) (DSE5220 only)
-Automatic upload transfer
-Configurable inputs Configurable outputs
-Configurable alarms and timers Digital inputs –
-Analog inputs
-Backlit character LCD display
-Engine protection
-Front panel mounting
-Configurable PC
-Front panel programming
-Remote monitoring
-Modbus RTU
-Engine history event log
-LED alarm indication
-LCD alarm indication
-Hid until the alarm icons
-Engine Exercise Mode
-Magnetic pickup
SPECS
-DC SUPPLY: 8V to 35V continuous
-STARTER DROPS: Able to survive at 0 V for 50 mS, provided the supply was at least 10 V before the drop and the supply is recovered to 5 V
-STARTER RELAY OUTPUT: 16A DC supply to supply voltage
-FUEL RELAY OUTPUT: 16A DC at supply voltage
-AUXILIARY RELAY OUTPUTS: 5A DC at supply voltage
-LOAD FAILURE/EXCITATION RANGE: 0V to 35V
-MAXIMUM OPERATING CURRENT 320mA at 12V, 215mA at 24V
-MAXIMUM IDLE CURRENT: 175mA at 12V, 95mA at 24V
-ALTERNATOR INPUT RANGE: 15V (L-N) to 333V AC (L-N) absolute maximum
-ALTERNATOR INPUT FREQUENCY: 50-60 Hz at rated engine speed (Minimum: 15V AC-LN)
-MAGNETIC PICKUP VOLTAGE INPUT RANGE: +/-0.5 V to 70 V peak
-MAGNETIC INPUT FREQUENCY: 10,000 Hz (max) at rated motor speed
-NETWORK SENSING INPUT RANGE (SERVICES): 15 V (L-N) to 333 V AC (L-N) absolute maximum
-NETWORK DETECTION INPUT FREQUENCY (UTILITY): 50-60Hz
– MAINS LOAD RELAY OUTPUT (SERVICE) AND GENERATOR: 8A AC 250V
-MODULE DIMENSIONS: 240 mm x 172 mm
-PANEL CUT: 220mm x 160mm
-MAXIMUM PANEL THICKNESS: 8mm
