Description
INTRODUCTION
The electrostatic field tester is a non-contact portable electrostatic field tester, which can measure the electrostatic value of the surface of objects and the ion balance (0~±200V) of electrostatic removal equipment.
ACCURATE TEST
The housing is made of anti-static material, with grounding buckle, ensures the measurement results are correct and reliable. The measurable range is 0~20KV (the working distance is 1 inch), equipped with two LED lights to ensure that the measurement is kept within 25mm of the measured object.
RED LCD DIGITAL
LCD for positive charge, blue LCD for negative charge, LCD screen renewal rate 5 times/s, easier to observe and record values.
AUDIBLE ALARM
Auto off/on/beyond measurable range.
SALES
SERVICE If you have any problems, please contact us freely, we will try our best to help you.
Specs:

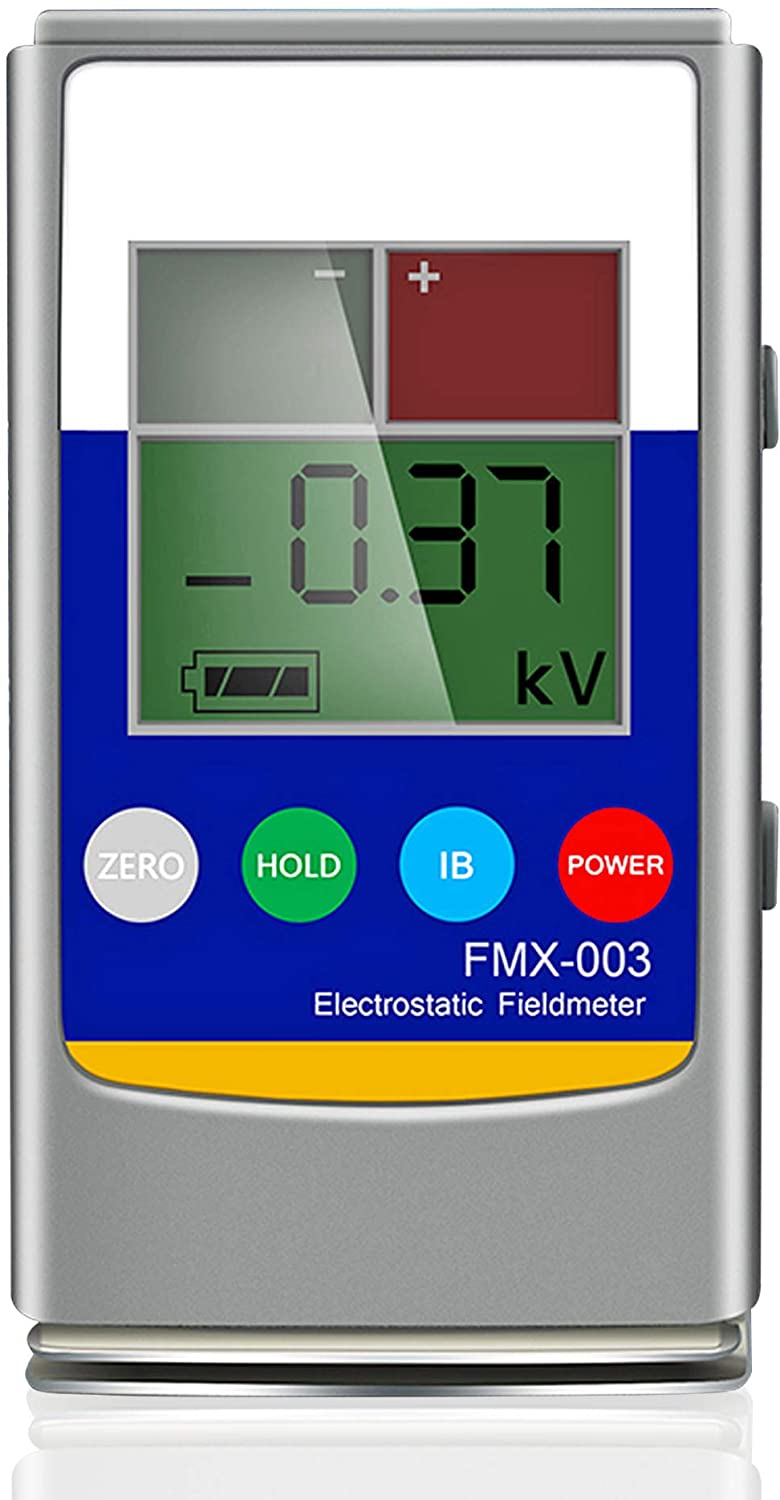

– Model No.: FMX-003
-Output: Red LCD for positive charge, Blue LCD for negative
charge-Power supply: 9V manganese battery, 6F22; Test Accuracy: ± 10%
-Measuring Range: 0~±1.49KV (Low Range), ± 1.0kV~± 20.00kV (High Range)
-Accuracy: ± 0.1KV (Low Range), ± 1kV (High Range); Measuring distance: 1 inch ± 0.2 inch (25mm ± 0.5mm)
-The tester also has an ion balance measuring plate, which can measure the residual voltage of the electrostatic removal equipment.
-The ion balance measurement range is 0~±200V.
-LCD screen refresh rate: 5 times/s; Response Time: 1 s
-Working environment: 10~40C, RH: 0~60%
-Sound Alarm: Auto Power Off/On/Beyond Measurable
Range-Auto Power Off: No Operation for About 5 Minutes
Mode Switching:
-Electrostatic Field: Press “POWER” and One Beep-Ion
Balance (Install Ion Balance Measurement Board): Press Zero and Power Keys at the same time, there are two beeps.
-Weight (battery not included): 0.17 kg; Size (cm): 165mm*25*115mm
