Description
The Tesla meter is a special instrument used to inspect and verify flux density, which is also one of the most universal devices in the field of magnetic measurement.

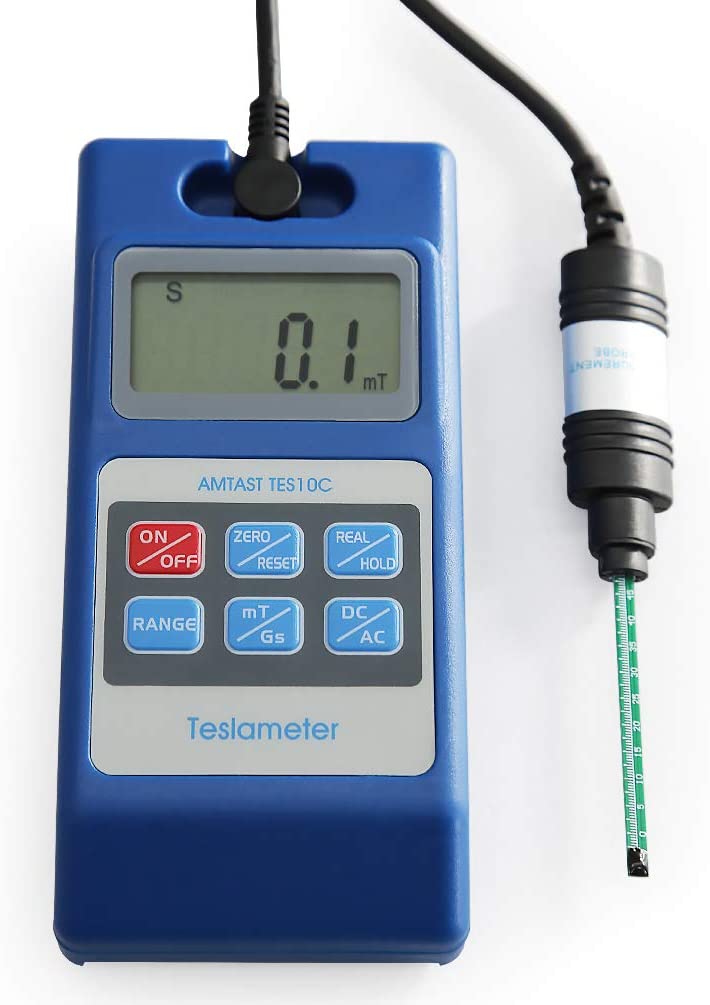

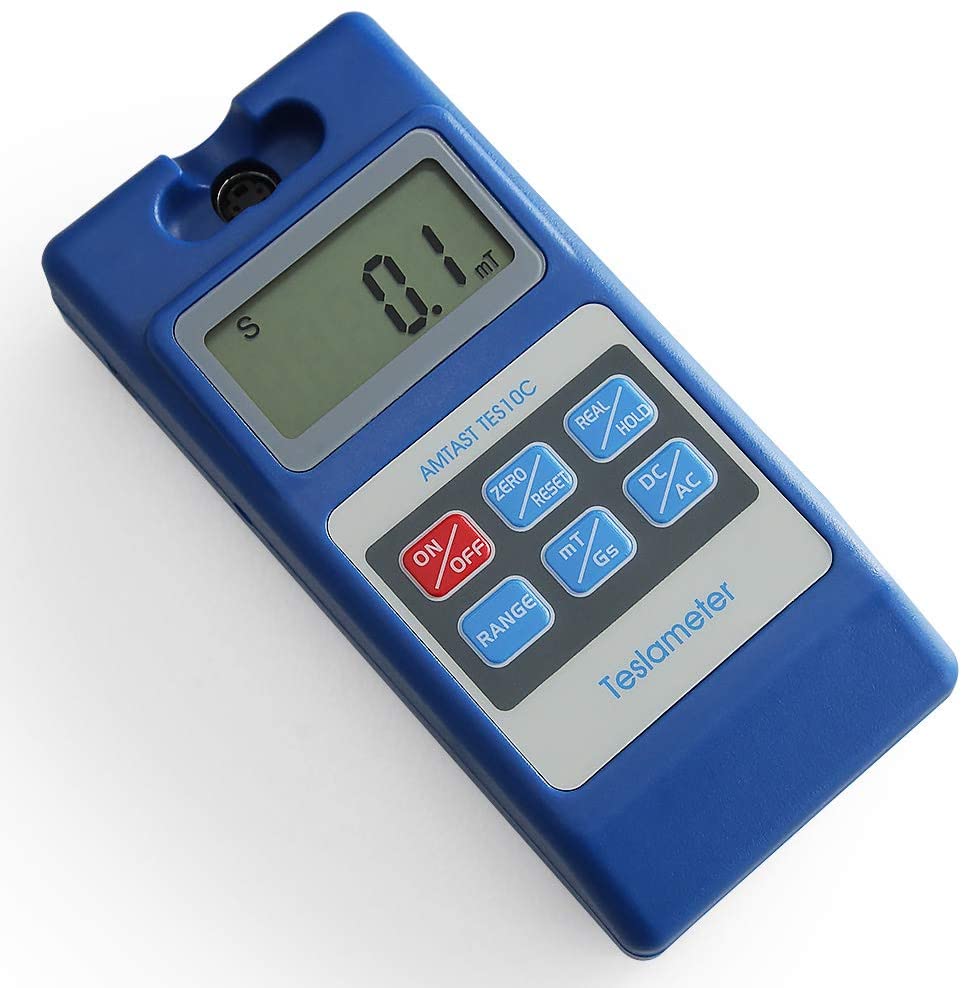

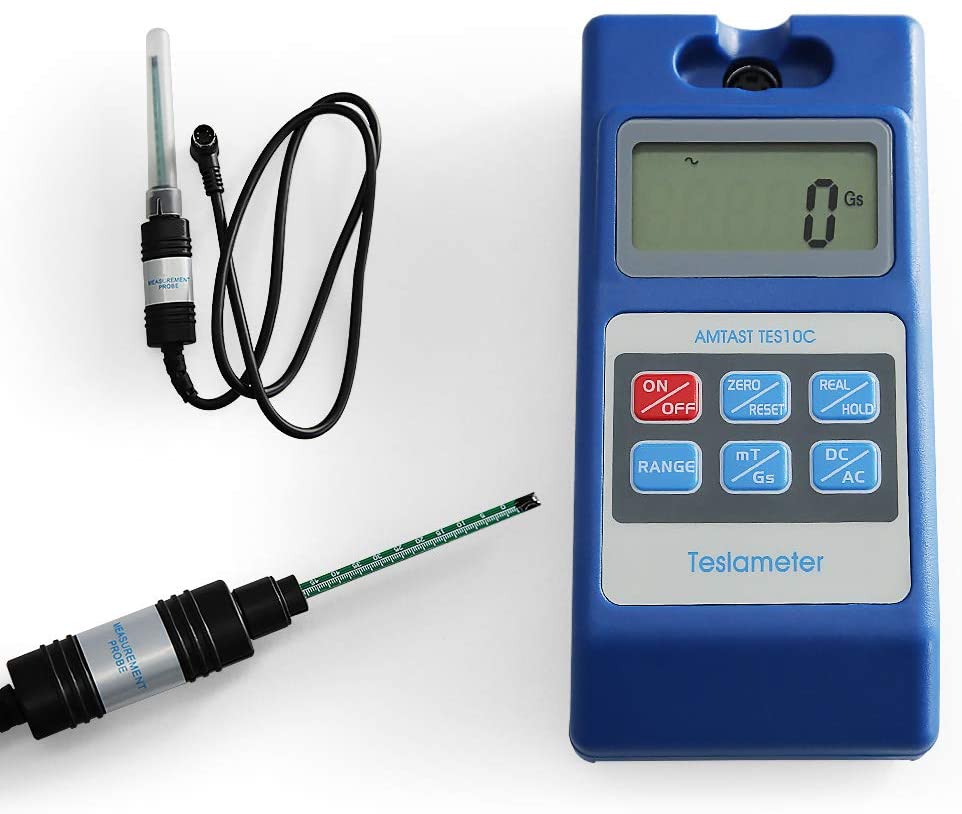

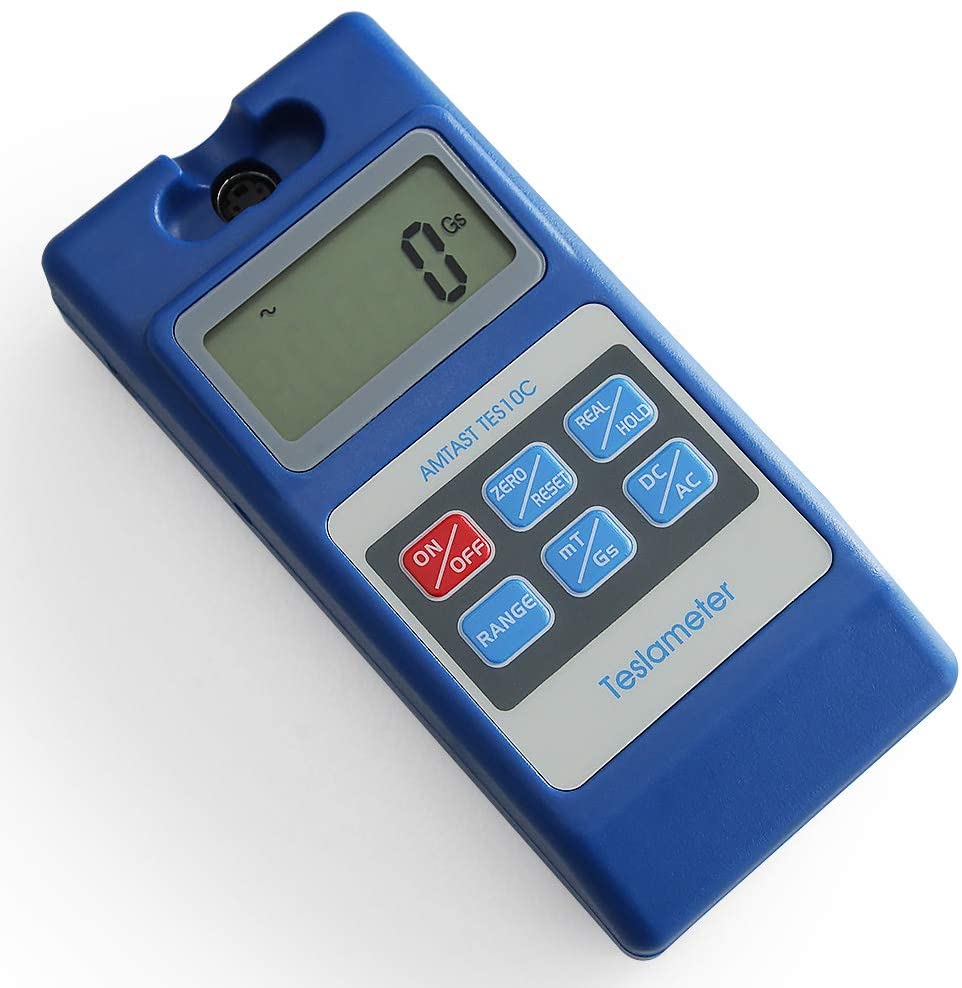

The Tesla digital meter model TES10C is controlled by the SCM, which is suitable for handle operation. It can be used to measure DC or AC magnetic field and flux density.
The device can be worn on the person. It is characterized by a wide measuring range, simple operation and clear display.
It is still added with the maintenance function, such as keep the measurement value/maximum value, as the mT or Gs display unit can be changed, the measurement range of 200mT or 2000mT can be chosen, and others that like reset zero per key and so on.
The power is one piece of 9V battery. It can be used continuously for about 20 hours. (Battery NOT included)
Reality working domain:
1) Distribution of the magnetic field of the surface of the material
2) Working magnetic field produced by some instrument that functions as an iron removal device, magnet sorting machine, magnetic mandrel, magnetic reel and degaussing coil.
3) Leakage magnetic iron surface
Specifications:
-Magnetic field: AC, DC-Sensor
connection-Zero reading/reset-Peak
change function/real
value-Gs/mT
unit change-In AC shows NS
polarity-Quick adjustment to zero-Display
: 4-1/2″ digital display
Range: 0~200mT, 0~2000mT; 0~2000G,0~20000G
Accuracy: ±1% (0~100mT); ±2% (100~2000mT)
Resolution:
-CCx10: 0.0~2000.0mT0.1mT-CAx1
: 0.00~200.00mT0.01mT-CAx10
: 0.0~2000.0mT0.1mT-Size
: 5.9 x 2.8 x 1.2 inches / 150 x 70 x 30 mm-Weight
: 15.87 oz/450 g-Input
power: 110V 60Hz with US plug.
-Battery supply: 6V DC adapter or 4 AA batteries (battery NOT included)
