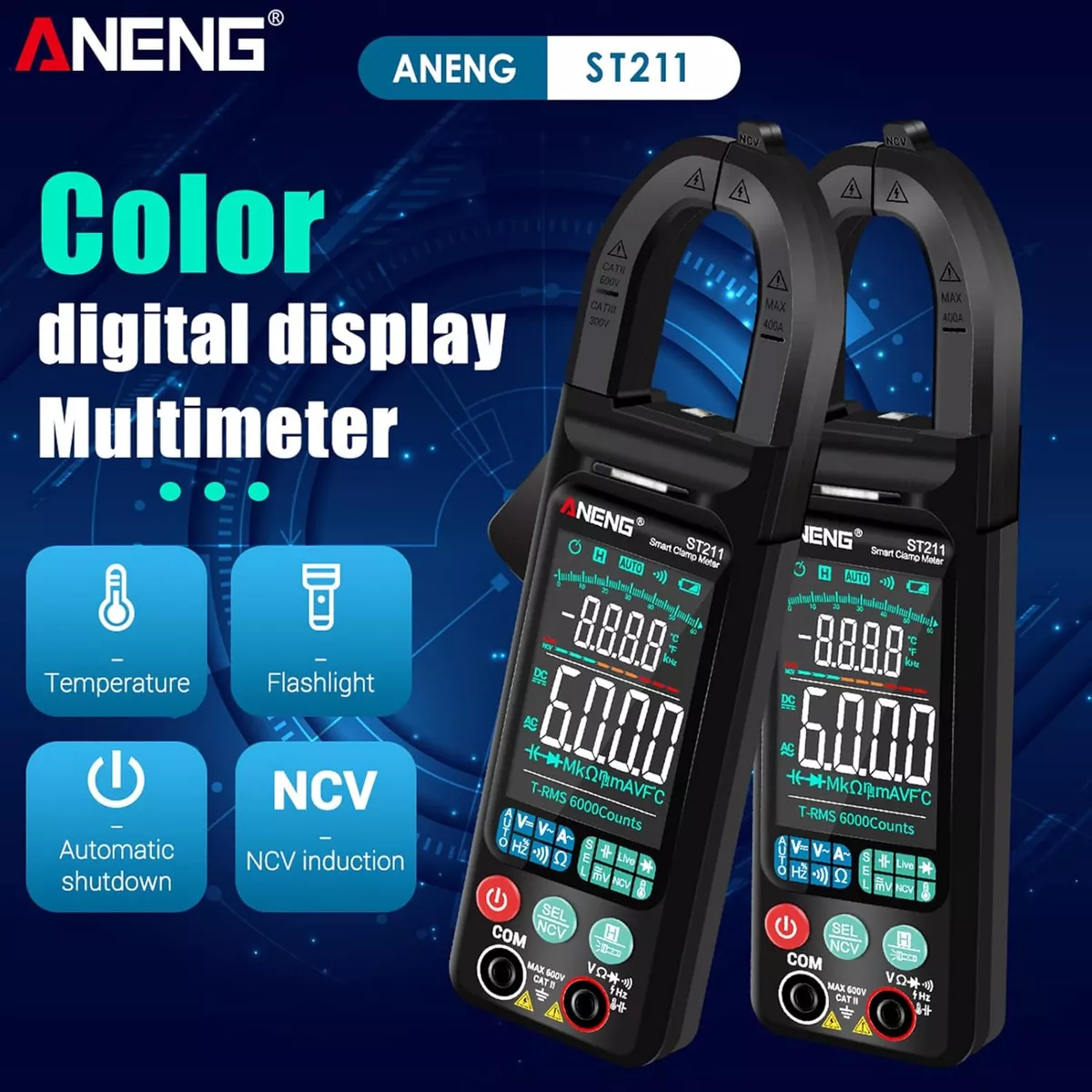

ANENG ST211 Digital Clamp Meter – AC/DC Current Meter with Advanced Functions
Product Description:
The ANENG ST211 Digital Clamp Meter is an accurate and reliable tool designed to measure alternating current (AC) and direct current (DC) efficiently. Ideal for technicians and electrical enthusiasts, this meter has various functions such as voltage, resistance, frequency, and diode testing. Its backlit display and ergonomic design make it easy to use in any work environment, even in low-light locations.

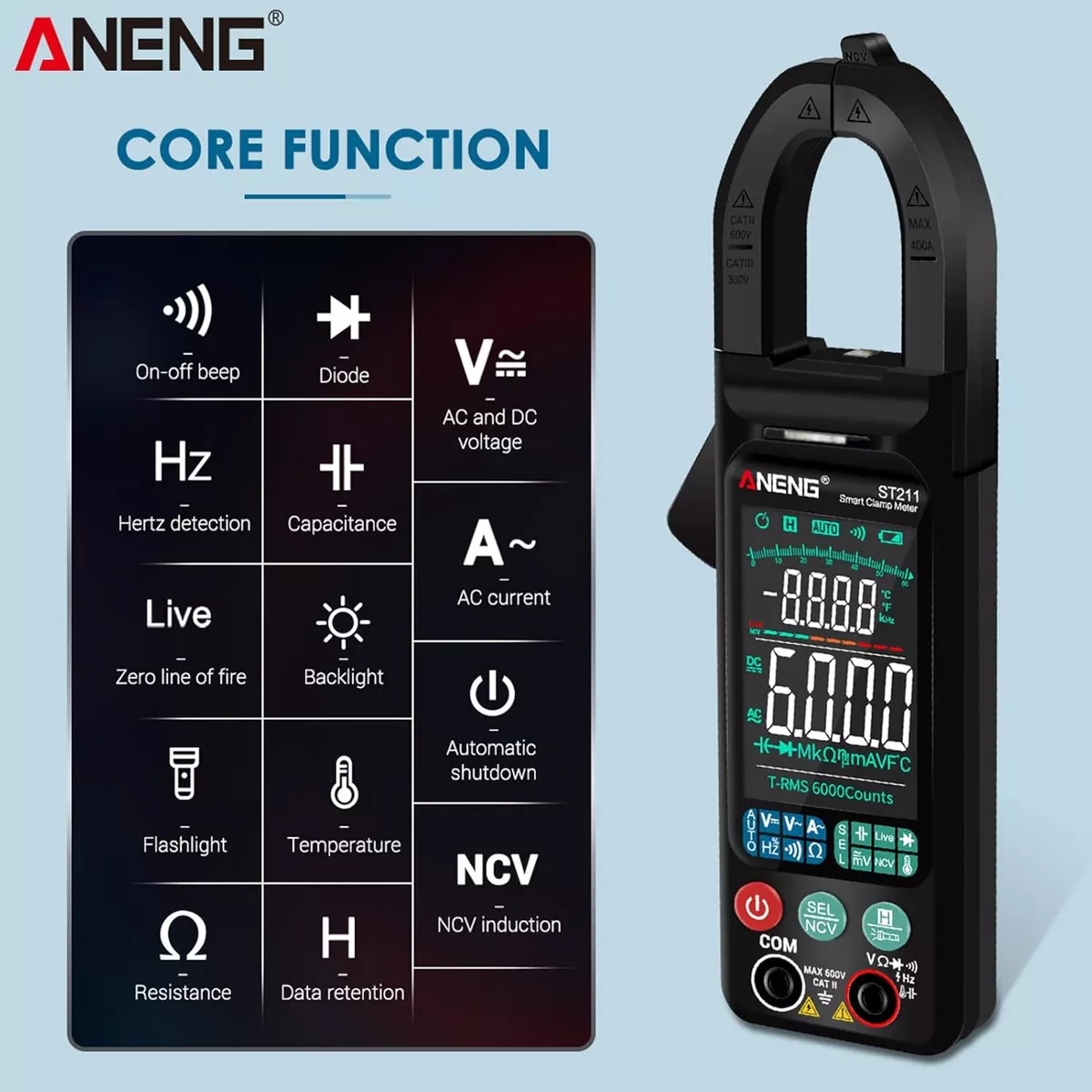

Key features:
AC/DC Current Measurement: Measures currents up to 600A in both alternating current (AC) and direct current (DC).
Voltage: Measures voltages from 0V to 600V in both AC and DC.
Resistance: Measures resistances in the range of 0 Ohms to 60 MegaOhms
.
Frequency: Capable of measuring frequencies up to 10MHz.
Diode Test: Includes the diode test function, useful for verifying the operation of components.
Backlit Screen: To facilitate the reading of results in low light conditions.
Data Retention: Allows you to freeze on-screen data for more convenient review.
Automatic Shutdown: The meter automatically turns off to save battery.
Low Power Indication: Alerts when the battery is low, to avoid unexpected interruptions in work.
Compact Design: Easy to transport and use in the field or in tight spaces.
Technical Specifications:
AC Voltage: 0V – 600V
DC Voltage: 0V – 600V
AC Current: 0A – 600A
DC Current: 0A – 600A
Resistance: 0 Ohms – 60 MegaOhms
Capacitance: 0nF – 40uF
Frequency: 0Hz – 10MHz
Diode Test: Yes
Backlit Display: Yes
Data Retention: Yes
Battery: 2 x AAA batteries (not included)
Material: High quality
ABS Maximum count: 6000 counts
NCV Induction (Contactless Detection): No
Ring: Yes, for audible alerts Includes
in the package:
1 x ANENG ST211

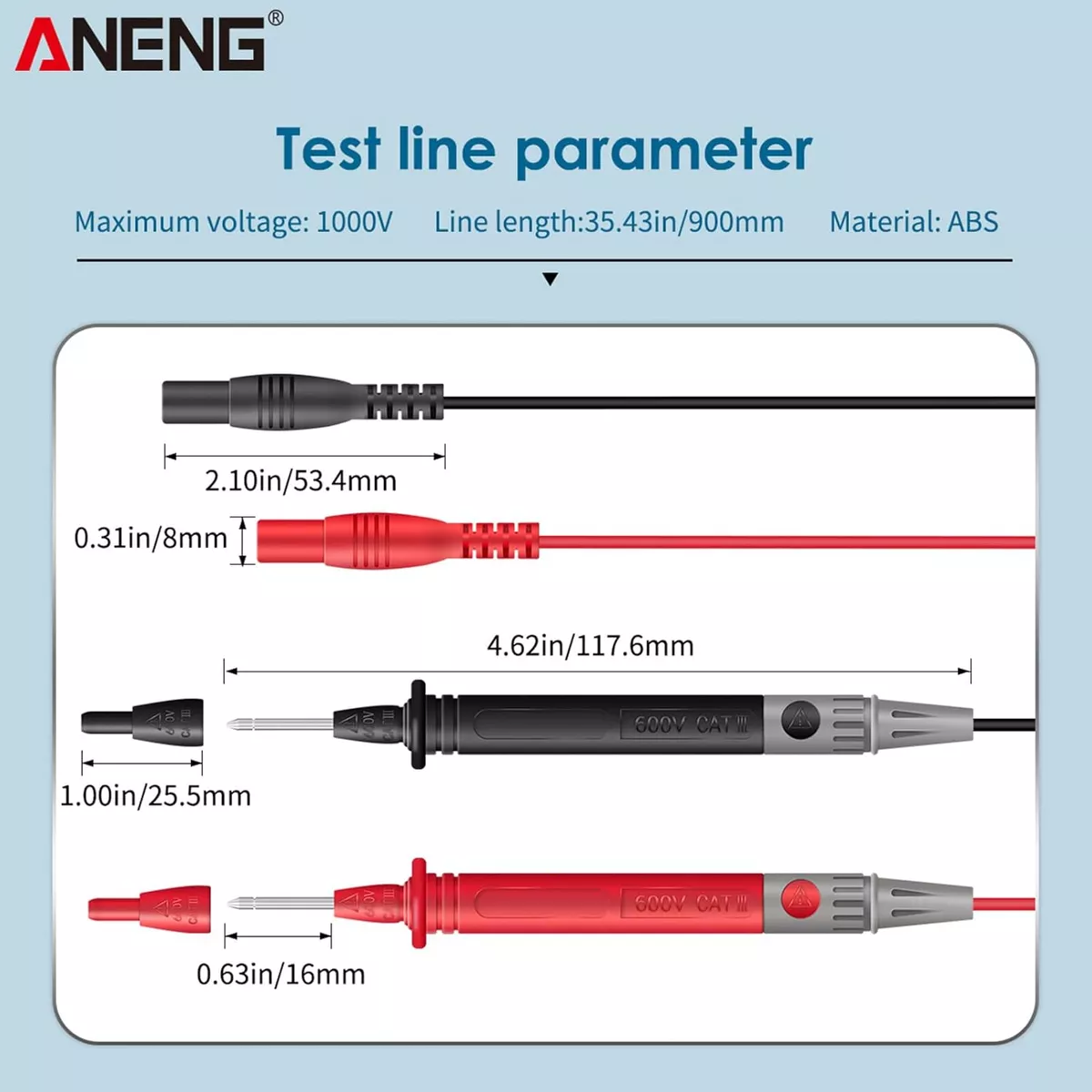

Digital Clamp Meter 2 x Test
Leads 1 x English

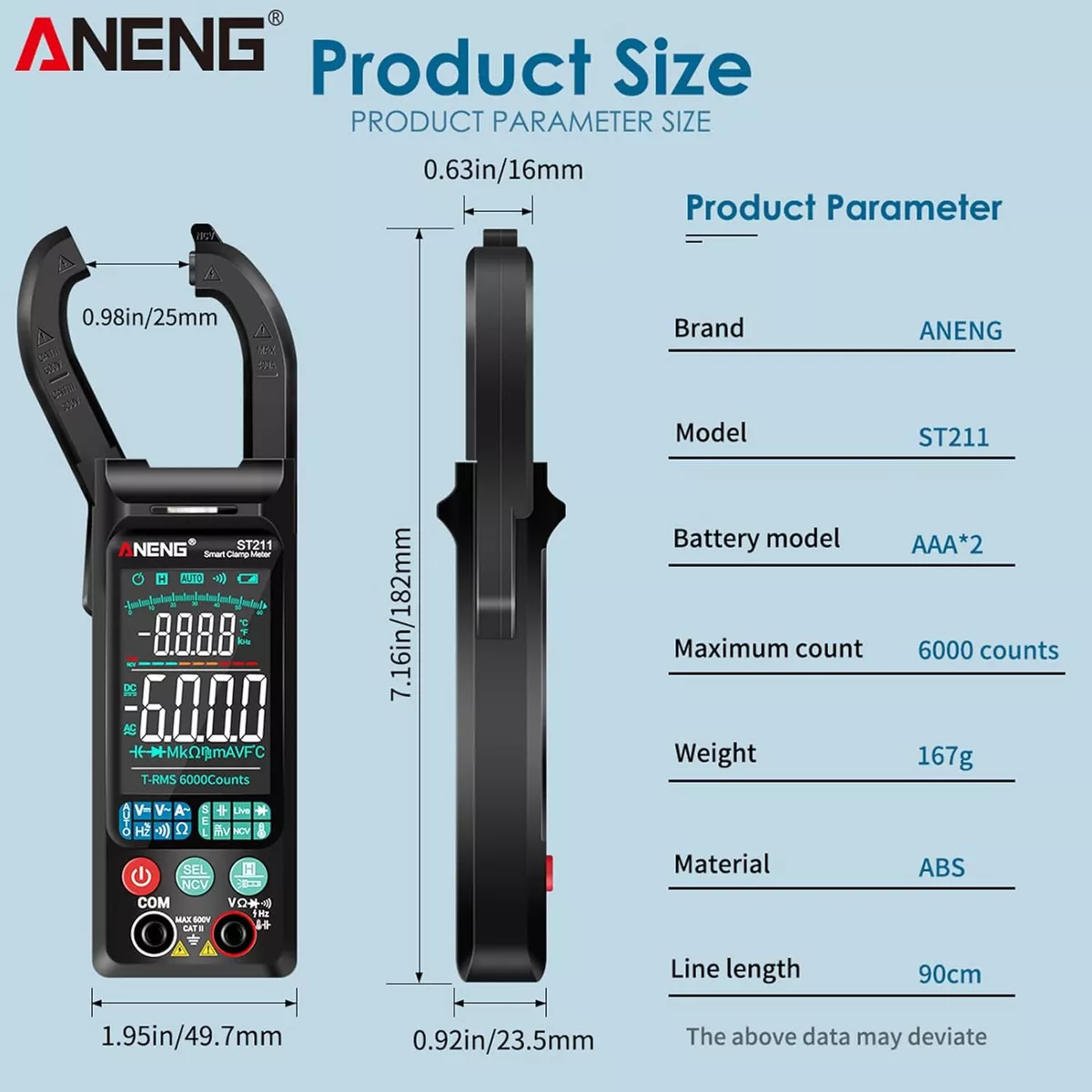

User Manual Packaging Specifications:
Gross weight: 0.3 kg
Net weight: 0.25 kg
Package dimensions: 23.5 cm x 11.5 cm x 4.5 cm
