Description

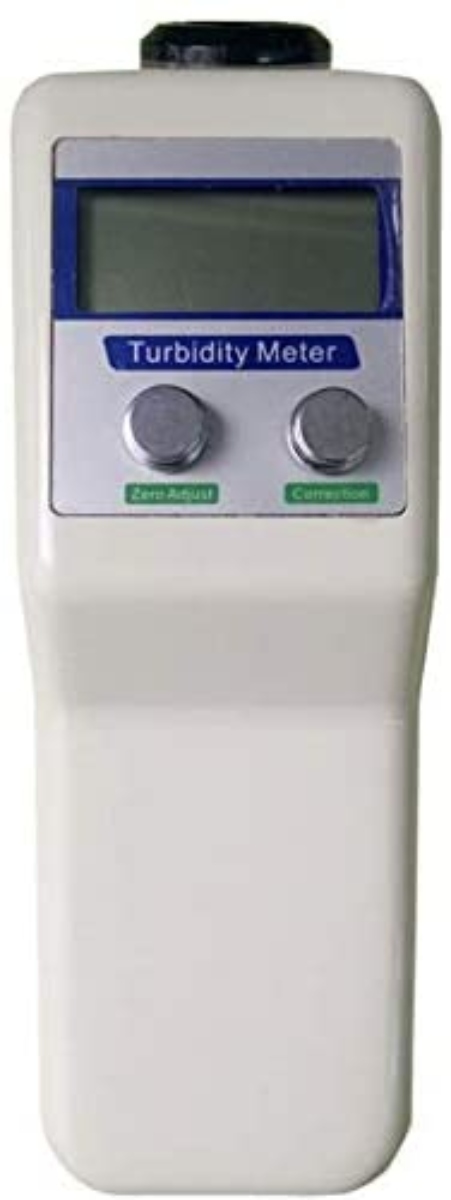

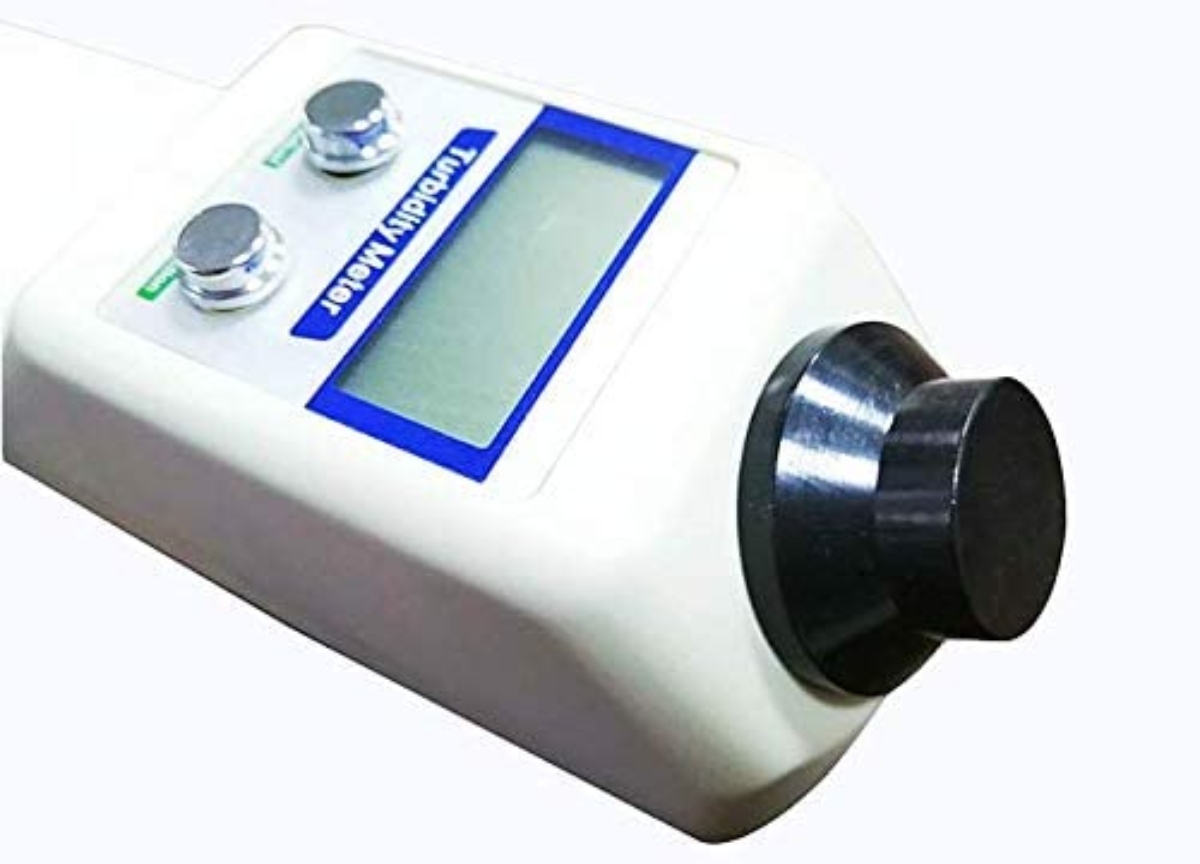

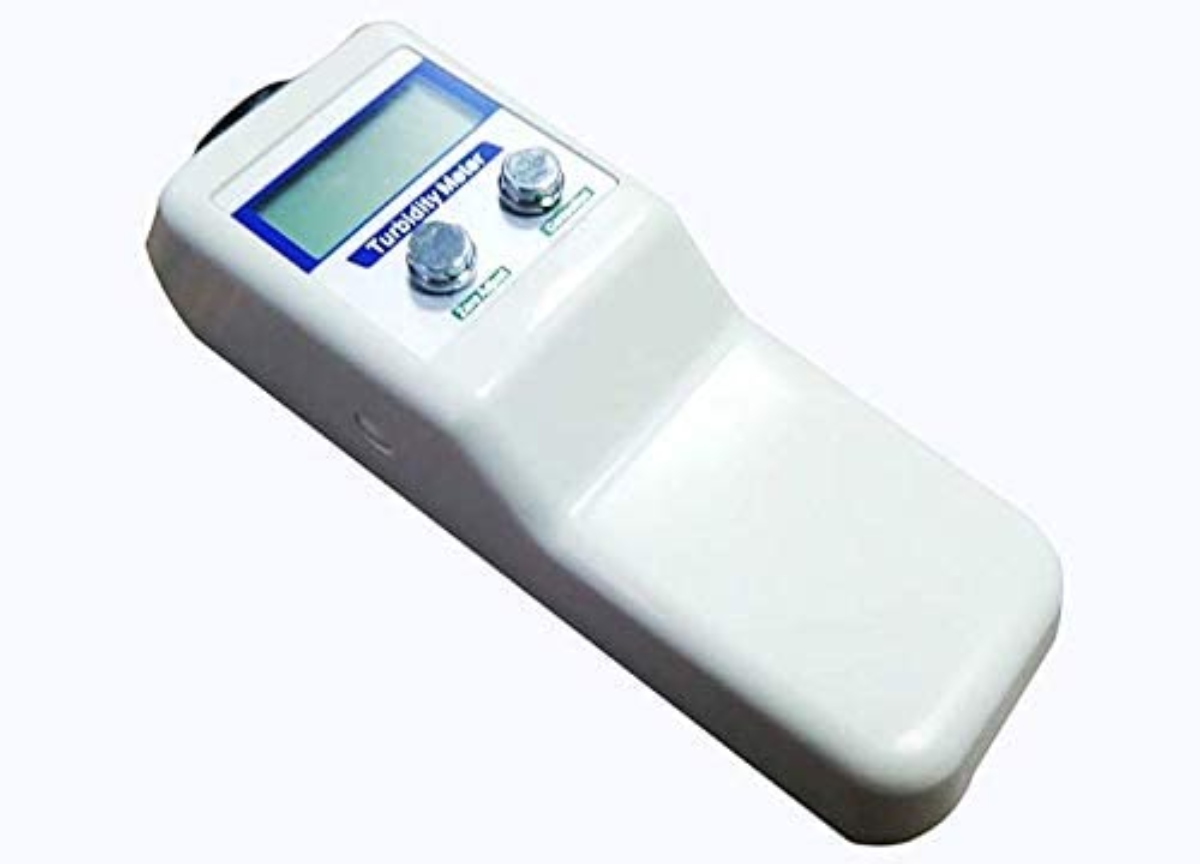

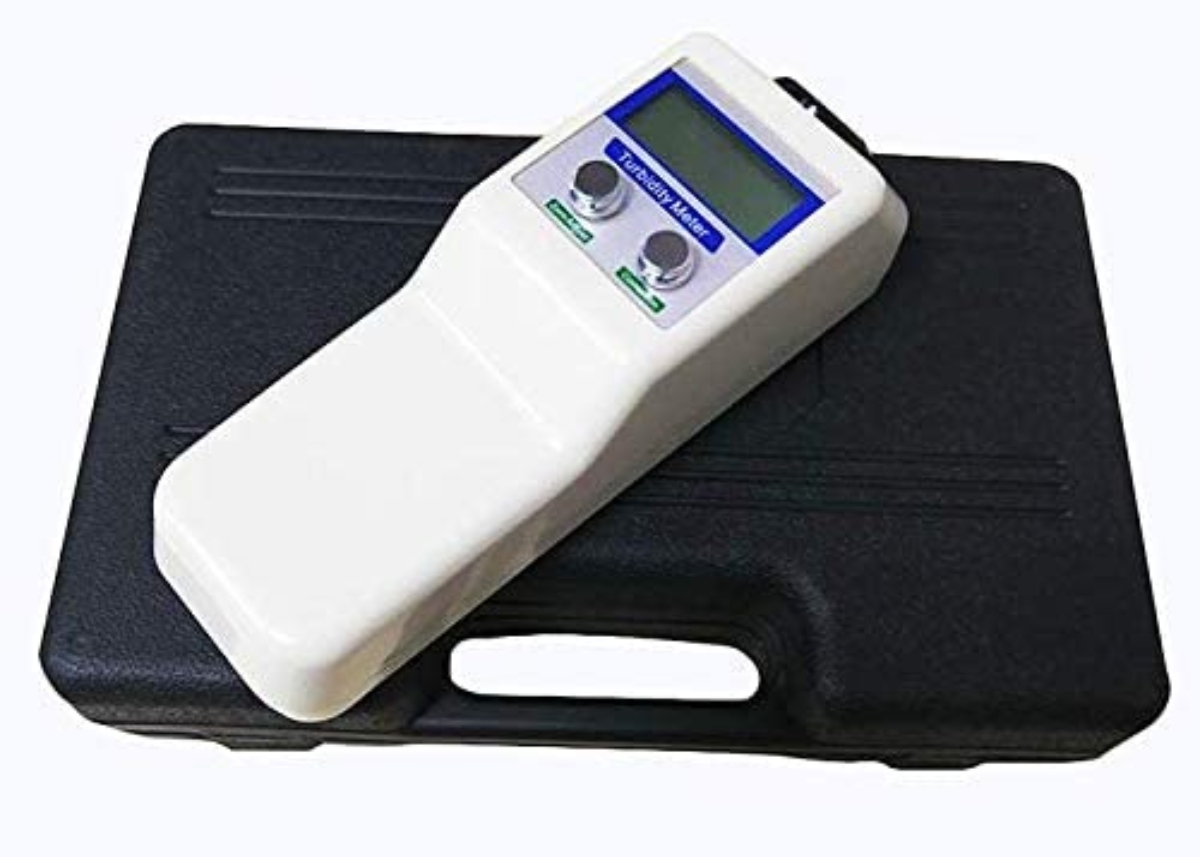

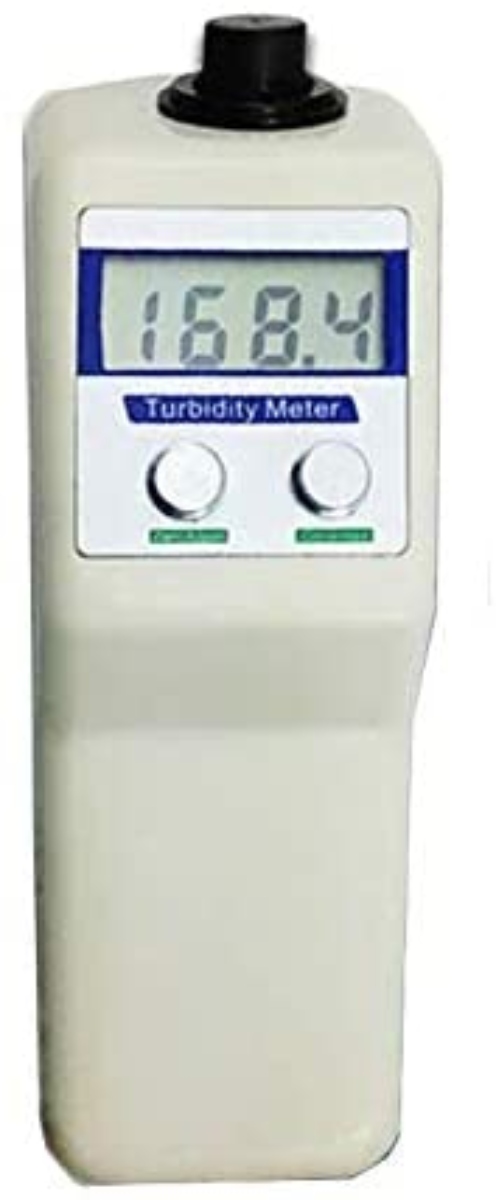

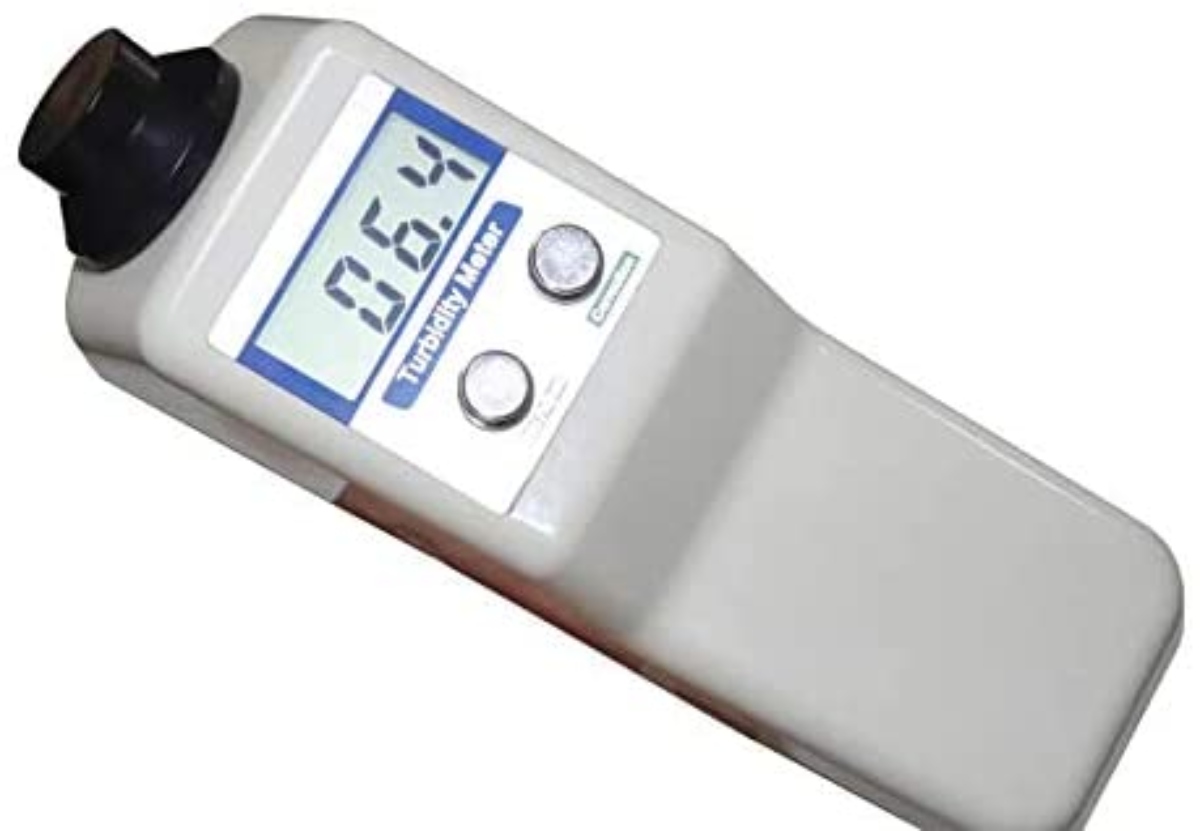

RaeSung WGZ-1B Scattered Light Turbidity Meter.
Characteristics:
Adopting low-drift and high-precision integrated circuit, efficient and time-resistant light source, ensuring reliable and long-lasting performance.
Configured with automatic shut-off function and low-power dissipation circuit, capable of effectively prolonging battery life.
AC and DC power supply, low power consumption, cabinet and beautiful contour design, making it easy to use in the field and laboratory.
Configured with output port of measured values, it is possible to connect with log meter.
Unique location structure and high-precision light path system, effectively ensuring accuracy and repeatability.
Overview
To measure the light scattering of insoluble particles suspended in water or transparent liquid and to quantitatively characterize the content of suspended particles. It can be widely used in power plants, pure water, water plants, sewage treatment plants, beverage plants, environmental protection departments, industrial water, wine industry and pharmaceutical industry, epidemic prevention departments, hospitals and other turbidity measurement departments.
Specs
Minimum Principle Scattered light at 90°
Minimum Reading (NTU) 0.1
Measuring Range (NTU) 0~200
Basic error F.S ± 2.5% F.S
Repeatability <= 1.5%
Zero draft (NTU) 0.2
DC 1.5V power supply x 5 AA alkaline batteries
AC Power Adapter 220V/50Hz/DC7.5V/0.2A
External dimension 235 x 75 x 65 mm
Characteristics:
Liquid crystal LCD screen.
LED Light Source,
Automatic shutdown.
AC and DC with two.
