Description

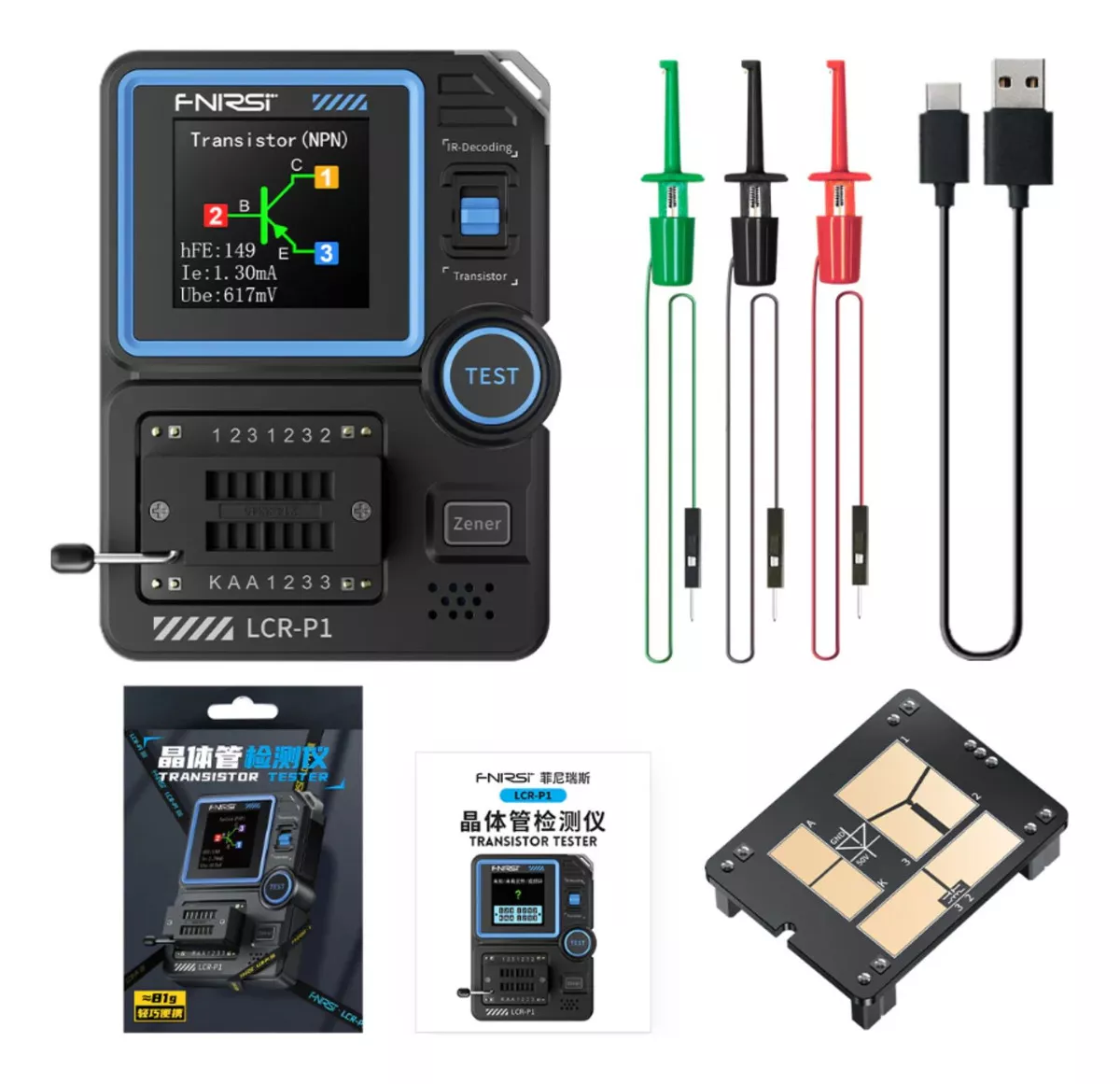

FNIRSI LCR-P1 Transistor Tester
Capacitance, diode and triode tester
1.44 inch color display
USB Type C with data export
Anti-reverse and anti-burn protection
Main features

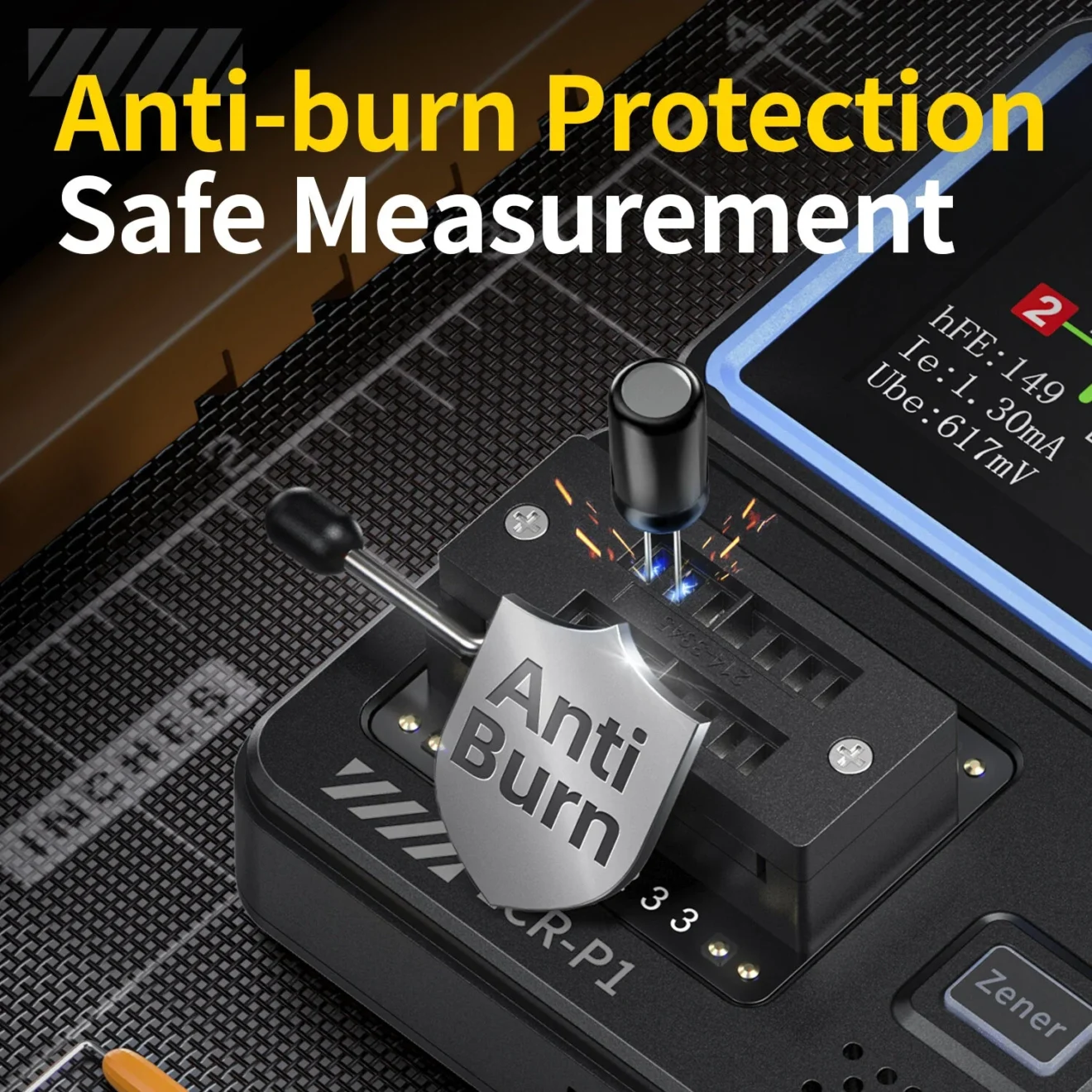

Intelligent anti-scald design: Automatic discharge of uncharged capacitors to avoid damage to the device.
Data export: Connection to computer via USB Type C to analyze and record measurements.

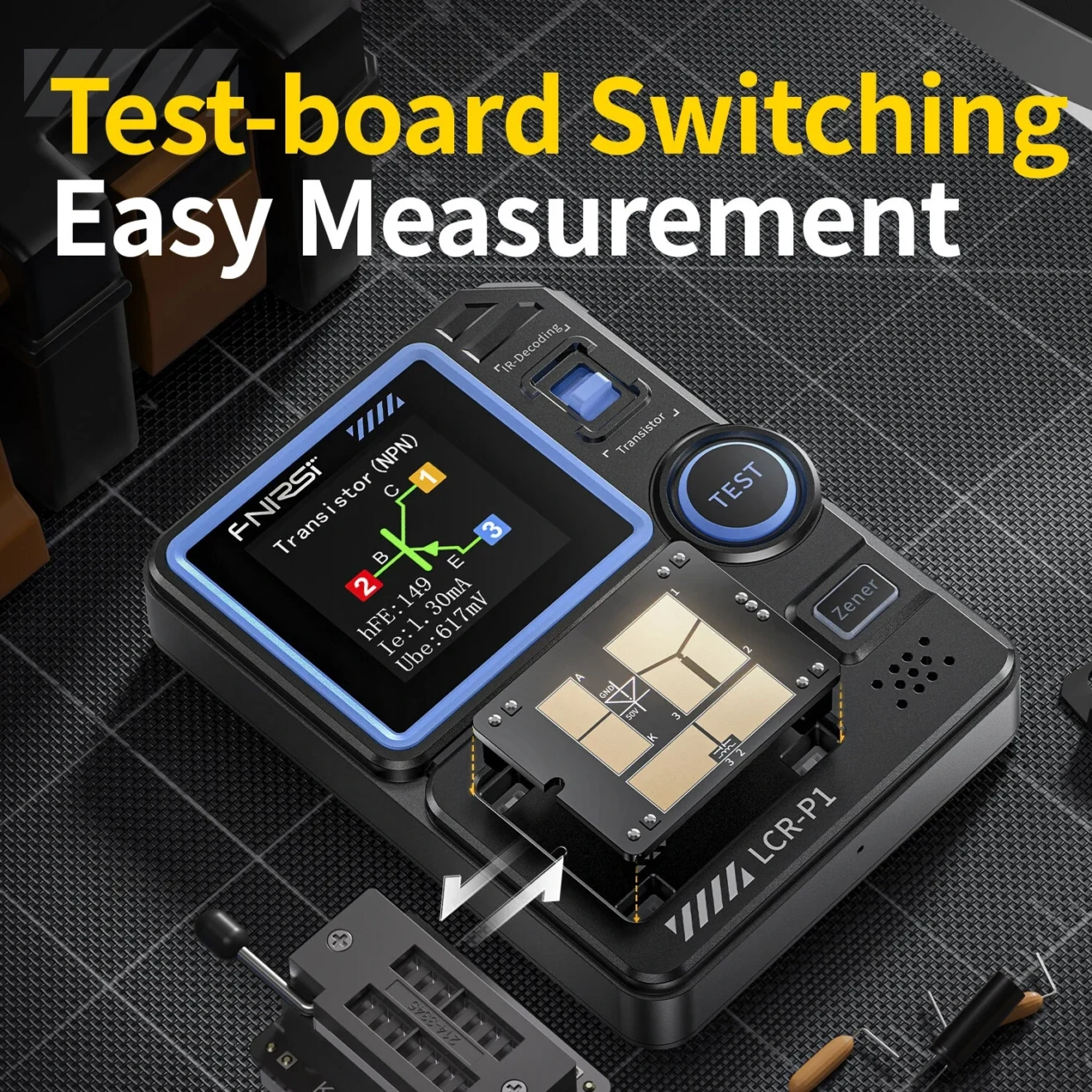

Alternative measurement modes: Replaceable test plates for versatility.

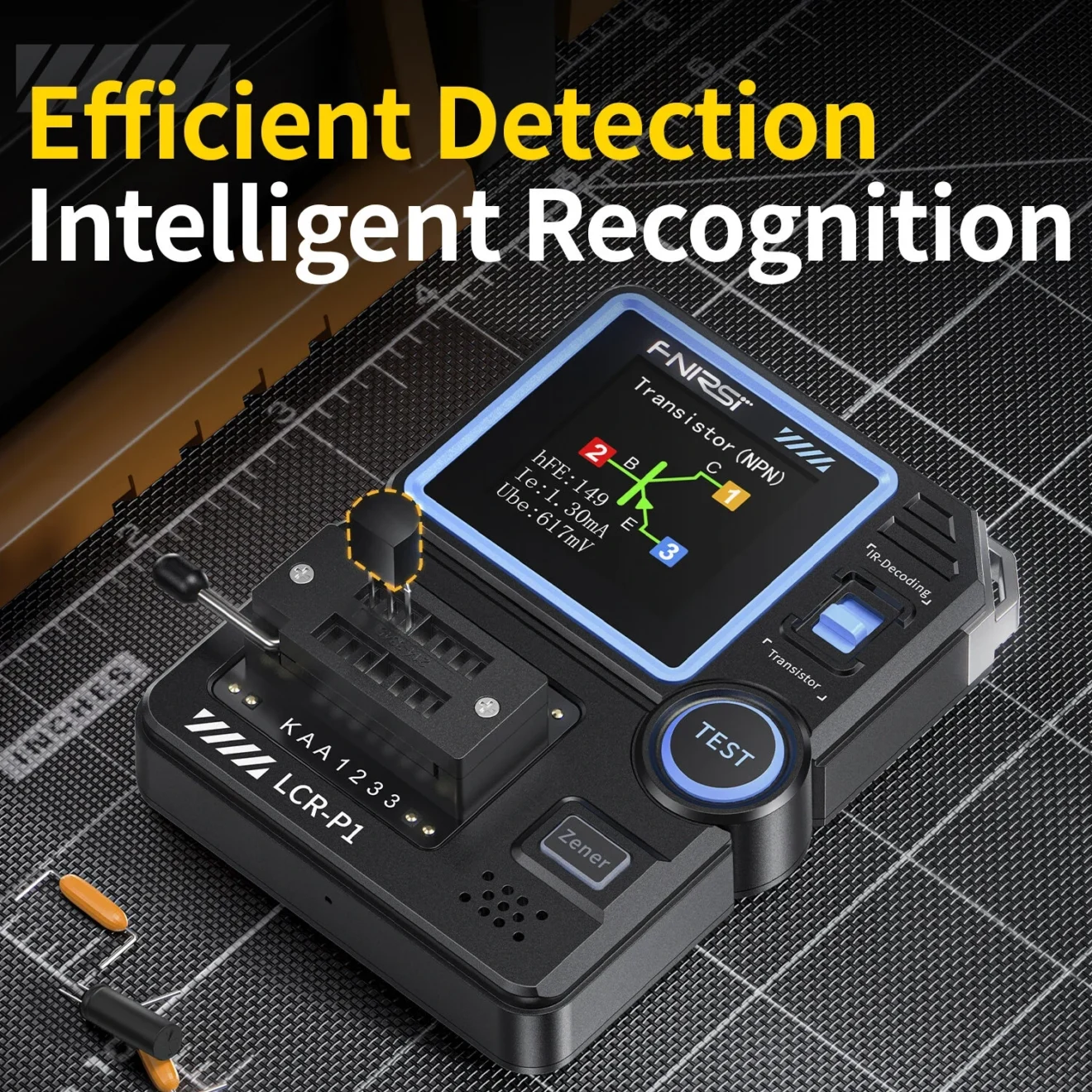

Intelligent component recognition: Automatic parameter identification by simply plugging in and holding components.
Independent measurement of Zener diode: Measuring range from 0.01V to 32V with pre-measuring source.
Technical Specifications
Model: FNIRSI LCR-P1
Display: 1.44-inch color
Charging: USB Type C, 5V/1A
Power supply: 300 mAh lithium battery
Operating temperature: 0~4°C
Measuring ranges
Resistance: 0.01 Ohms – 50 Mega Ohms
Capacitance: 25pF – 100mF
Inductance: 10uH – 1000uH
Zener diode: 0.01V – 32V
Battery voltage: 0.1V – 4.5V
Compatible field effect transistors: JFETs, IGBTs, MOSFETs
Thyristor trigger voltage: <5V
Additional functions
Anti-scald protection
Data export
Firmware upgrade
