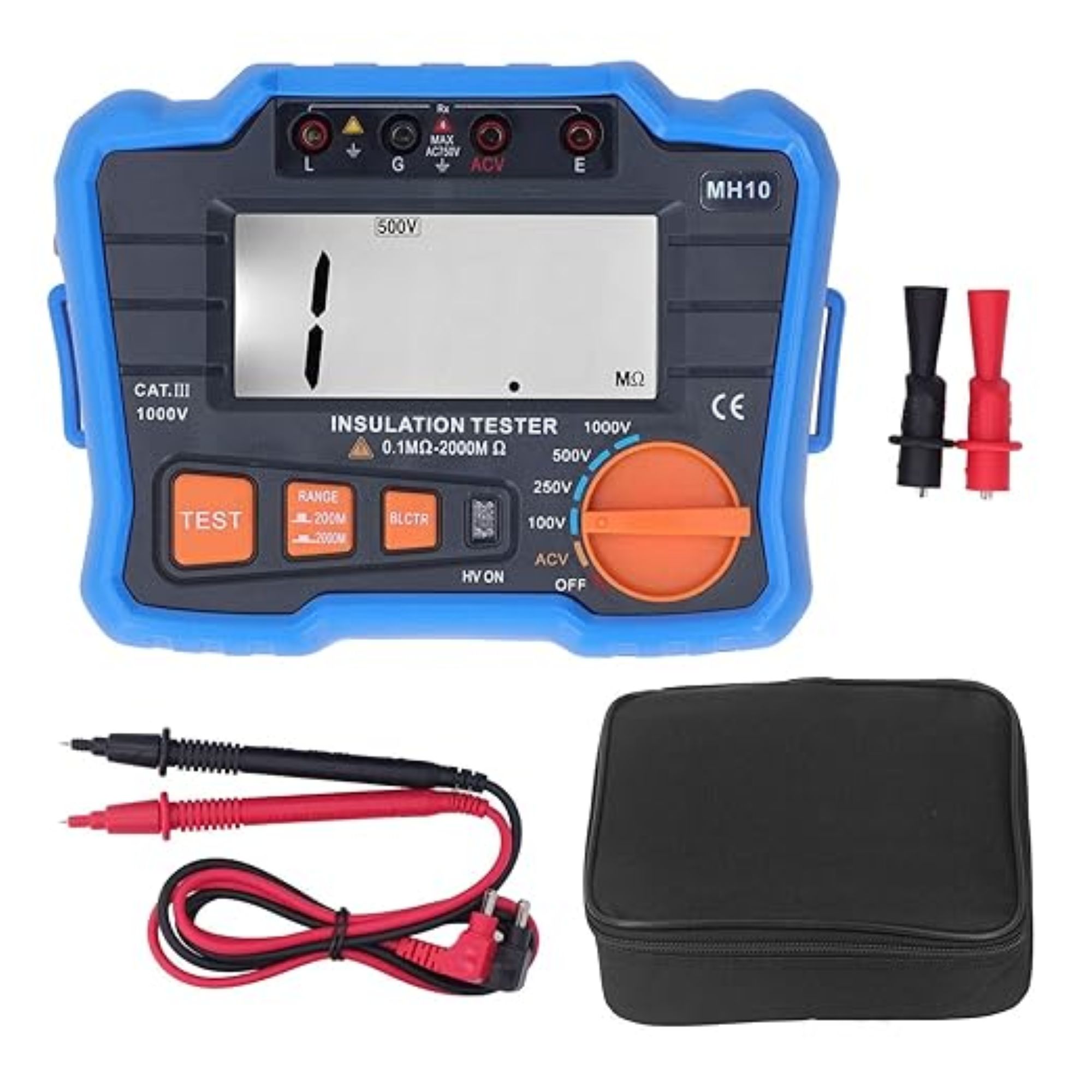

Digital Insulation Tester ANENG MH10

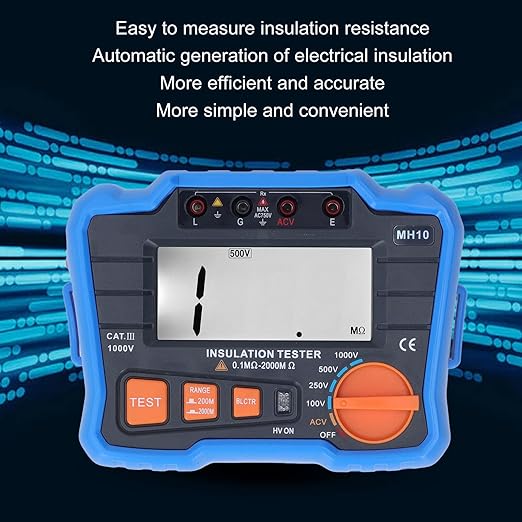

Description:ANENG MH10 is a high precision digital insulation tester, designed to measure the insulation resistance of various electrical equipment and insulating materials, such as transformers, motors, cables, switches and more. Ideal for maintenance, repair, testing and verification of electrical equipment.
Characteristics:
Insulation resistance measurement with 4 test voltages: 100V, 250V, 500V and 1000V.
High pressure indication by LED and “HV” display for electric shock hazard warning.
Resistance measurement range: 0.1MegaOhm
to 1999MegaOhm
with manual range change.
Heavy load capability with output short-circuit current greater than 1.0 mA.
AC voltage measurement from 1V to 750V with frequency from 40Hz to 70Hz.

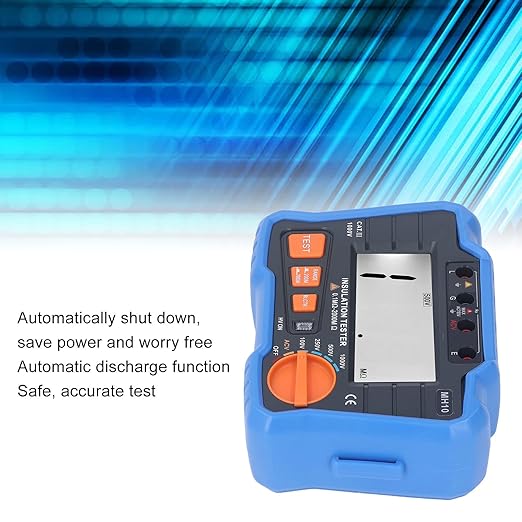

Automatic discharge function for greater safety.
Energy saving with automatic shutdown after 22 minutes of inactivity.

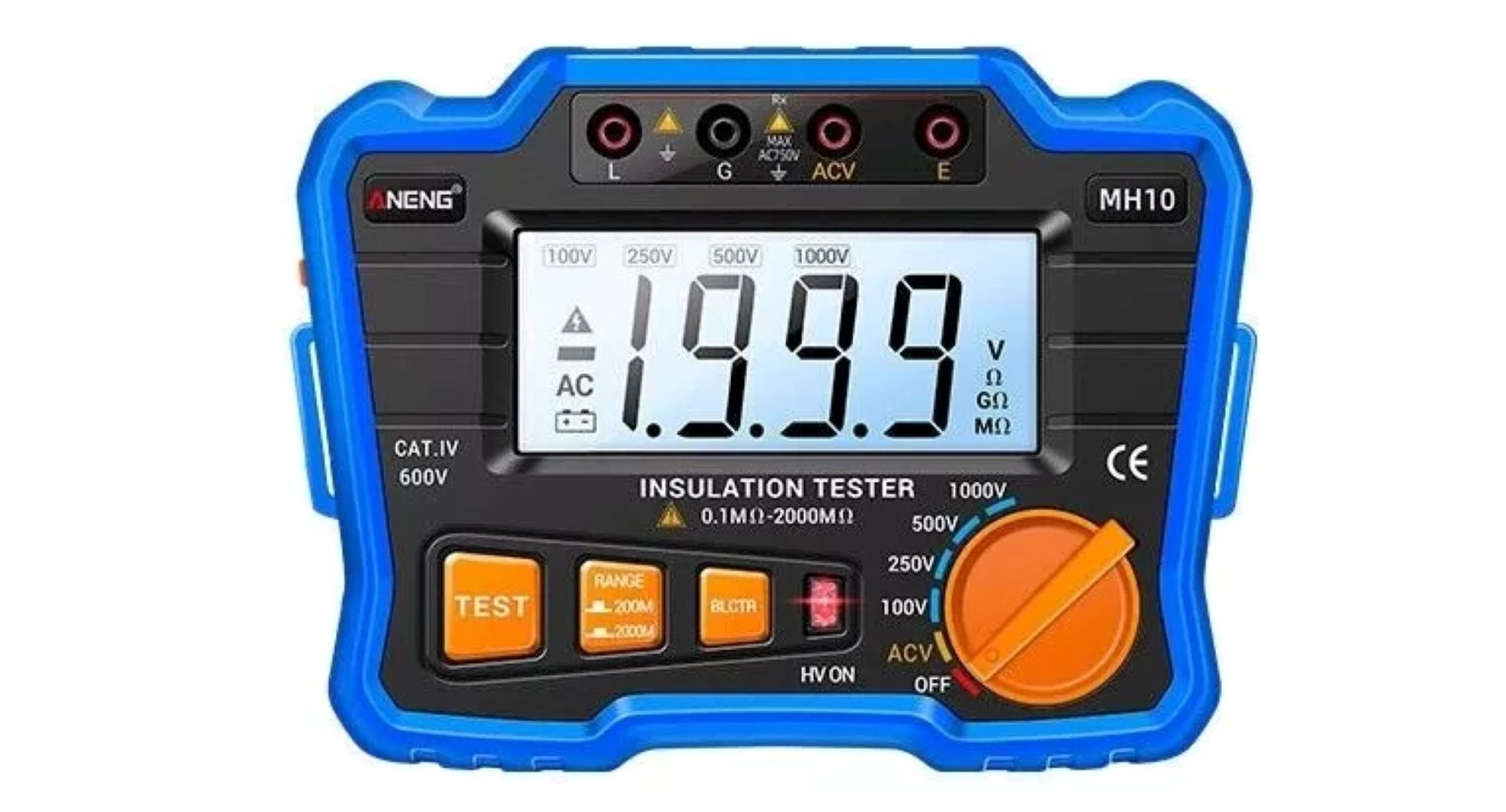

Large backlit LCD display for easy reading of values.

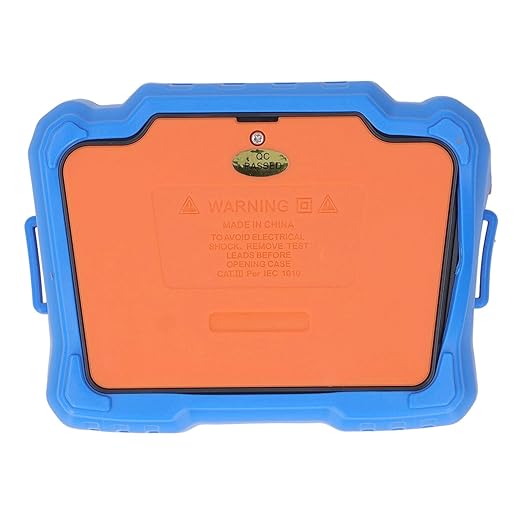

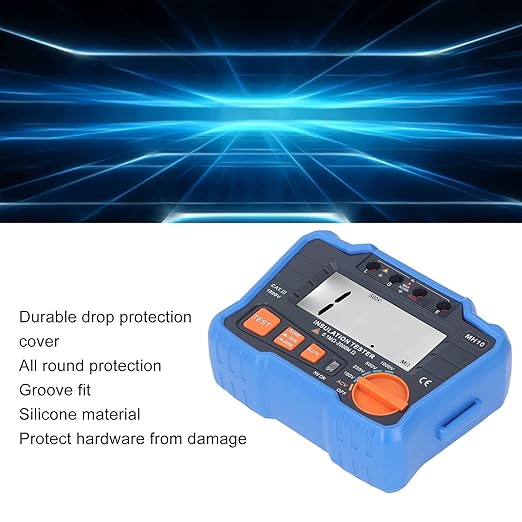

Rugged design with drop-resistant silicone cover.
Technical specifications:
Output voltages: 100V, 250V, 500V, 1000V (accuracy ±10%).
Short circuit current: >1.0 mA.
Insulation resistance: 0.1MegaOhm
– 1999MegaOhm
.
AC voltage measurement: 1V – 750V (accuracy ±1% + 6 digits).
Test conditions: Temperature 23 ± 5 °C / Humidity 45% – 75% RH.
Working conditions: Temperature 0 °C – 40 °C / Relative humidity greater than or equal to 85%.
Dimensions: 160 x 125 x 85 mm.
Weight: 500 g (without batteries).

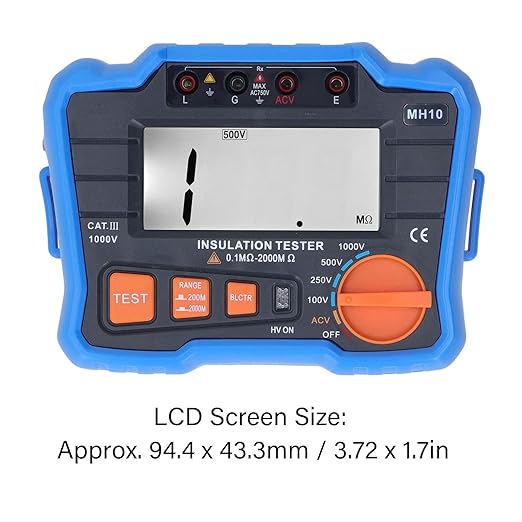

LCD screen: 94.5 x 43.3 mm.
Battery: 6 AA batteries (NOT included).
Low battery indication.
