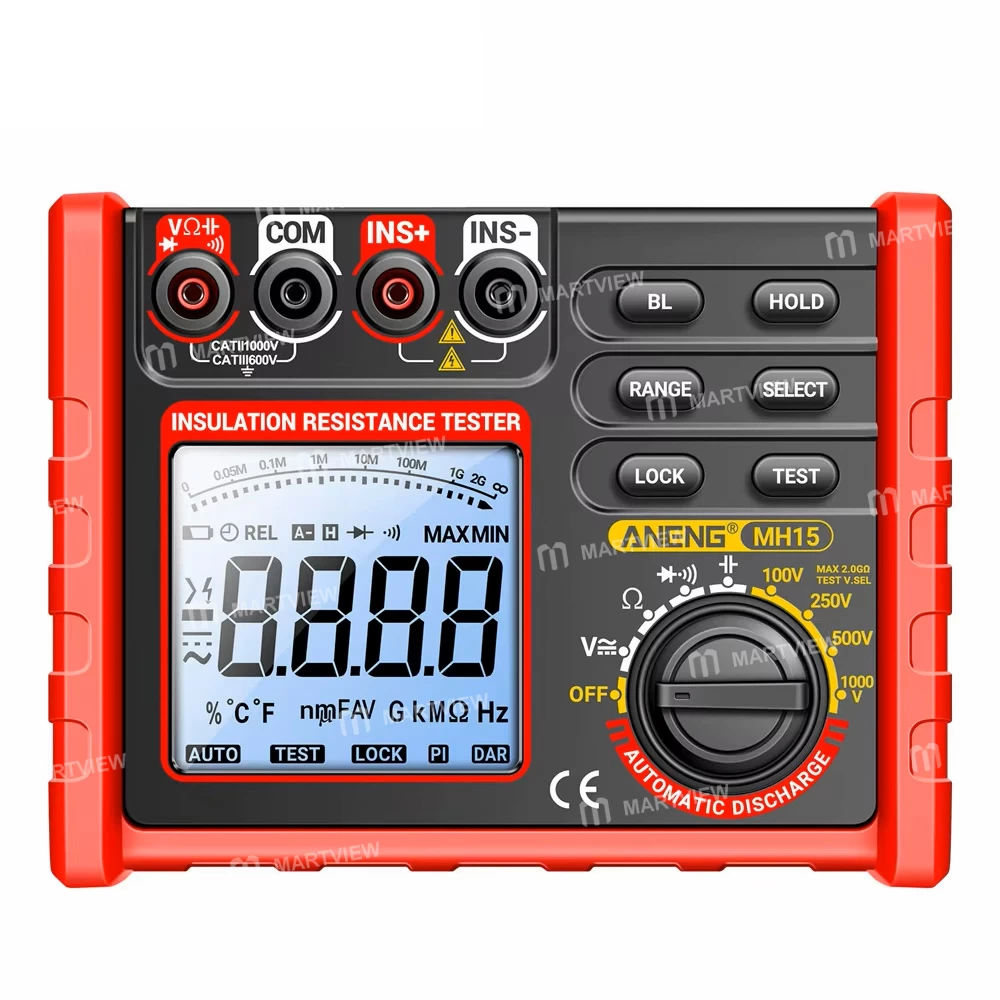

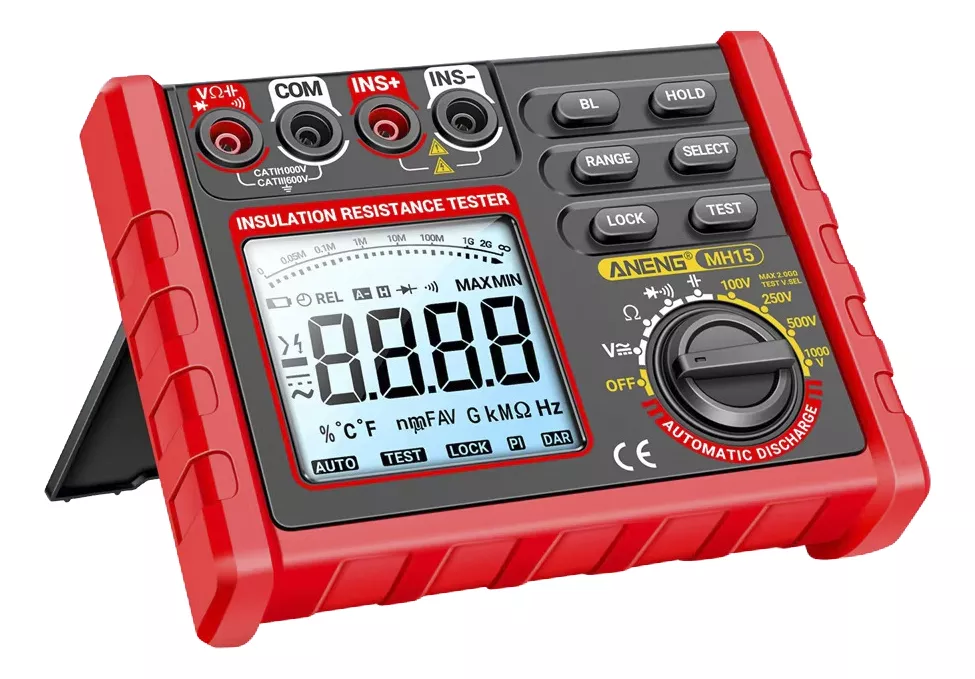

ANENG MH15 Insulation Resistance Meter – Multifunctional Digital Multimeter with Auto Discharge, AC/DC Voltage and LCD Megger
General Description:

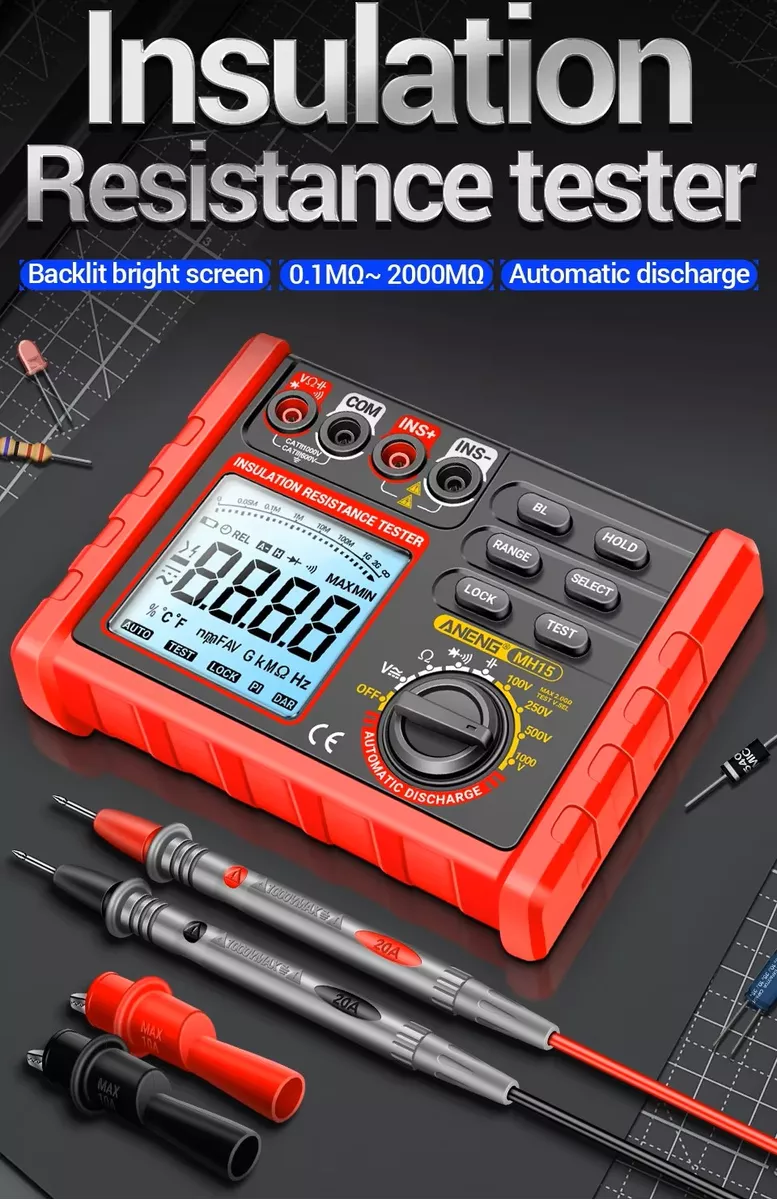

The ANENG MH15 is a multifunctional digital meter designed to measure insulation resistance, AC/DC voltage, diodes and more.
This instrument is ideal for precision work and maintenance of electrical systems, as it allows highly accurate measurements and offers a variety of useful functions.
It features four test voltages (100 V, 250 V, 500 V and 1000 V) for insulation resistance measurement, polarity indication, data hold and automatic shutdown, facilitating its use in a wide range of applications.
Its ABS and silicone construction makes it strong and durable.
Technical specifications:
Model: ANENG MH15
Power type: 1.5 V AA battery (6 pieces) (NOT INCLUDED)
Display type: LCD digital display
Maximum AC voltage: 750 V
Maximum DC voltage: 1000 V
Maximum resistance: 2000 MegaOhms
Measuring range:
AC voltage: 0 V – 750 V
DC voltage: 0 mV – 1000 V
Resistance: 0 Ohms – 60 Megohms
Capacitor: 0 nF – 60 mF
Diode: Diode measurement

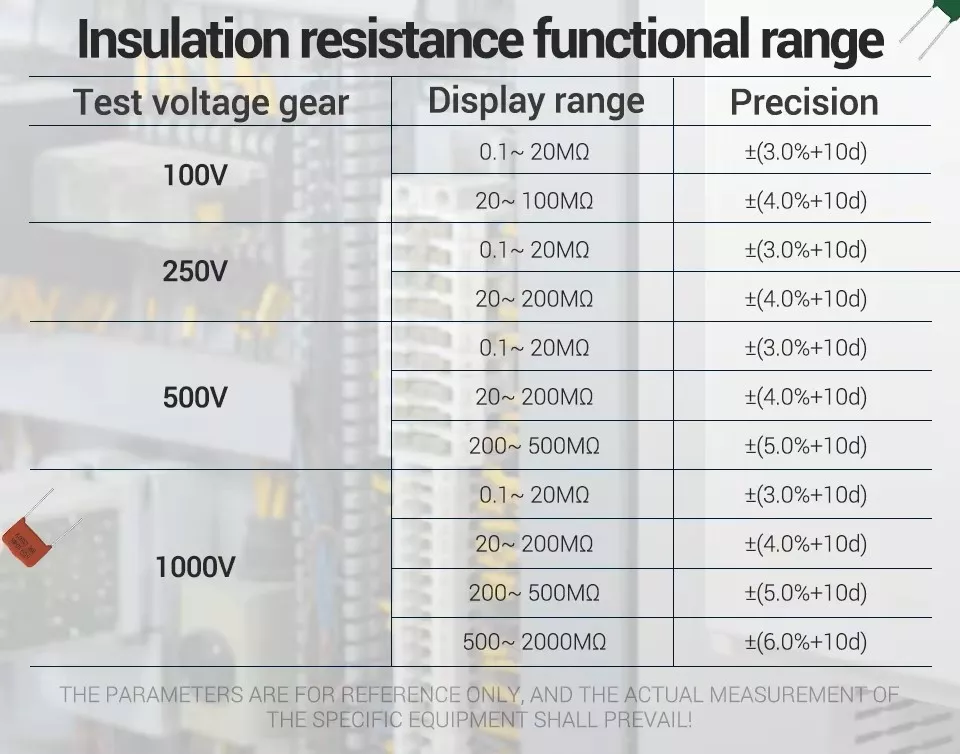

Insulation resistance range:
100 V: 0.1 MegaOhms
– 100 MegaOhms
250 V: 0.1 MegaOhms
– 200 MegaOhms
500 V: 0.1 MegaOhms
– 200 MegaOhms
1000 V: 0.1 MegaOhms
– 2000 MegaOhms
Accuracy:
AC voltage: ±(2.5% + 5d)
DC voltage: ±(1.5% + 5d)
Resistance: ±(1.5% + 10d)
Capacitor: ±(6.0% + 20d)
Additional functions:

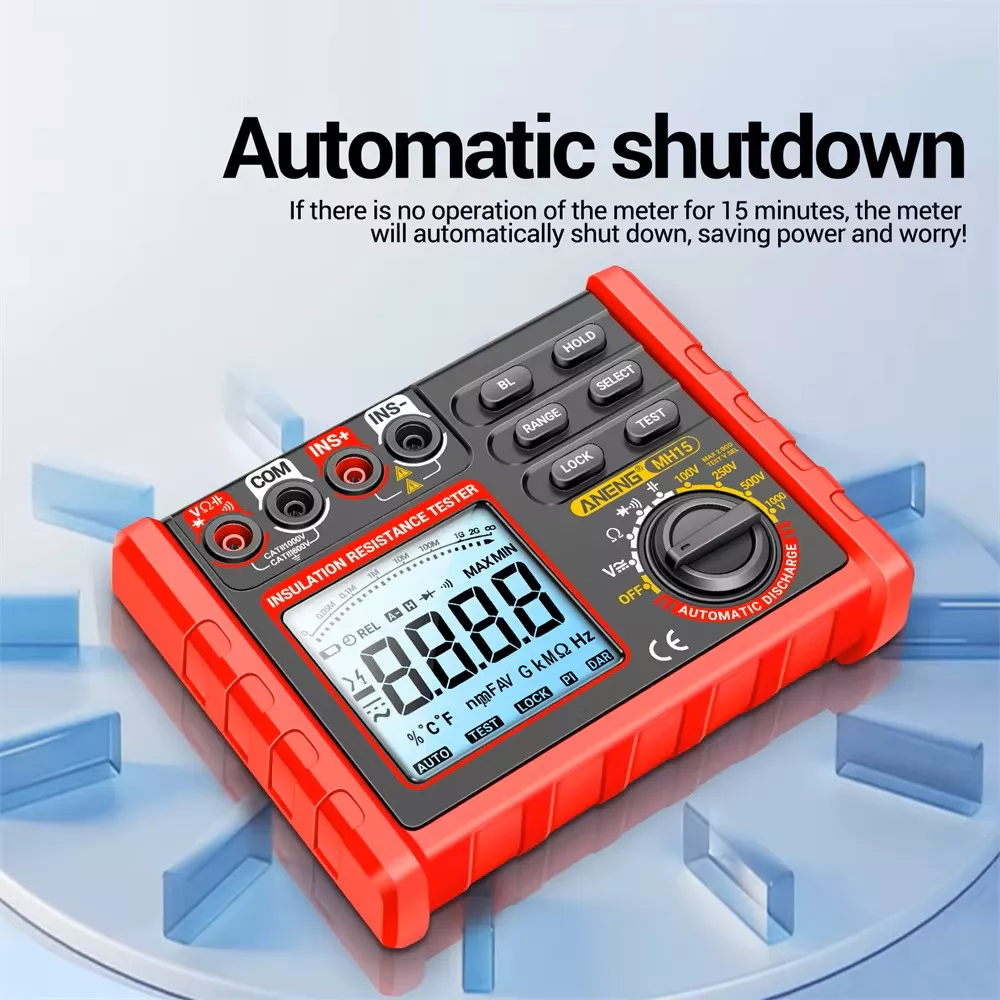

Automatic shutdown after 15 minutes without operation
Buzzer
Data retention
Low power warning
Material: ABS and silicon
Mode of use:

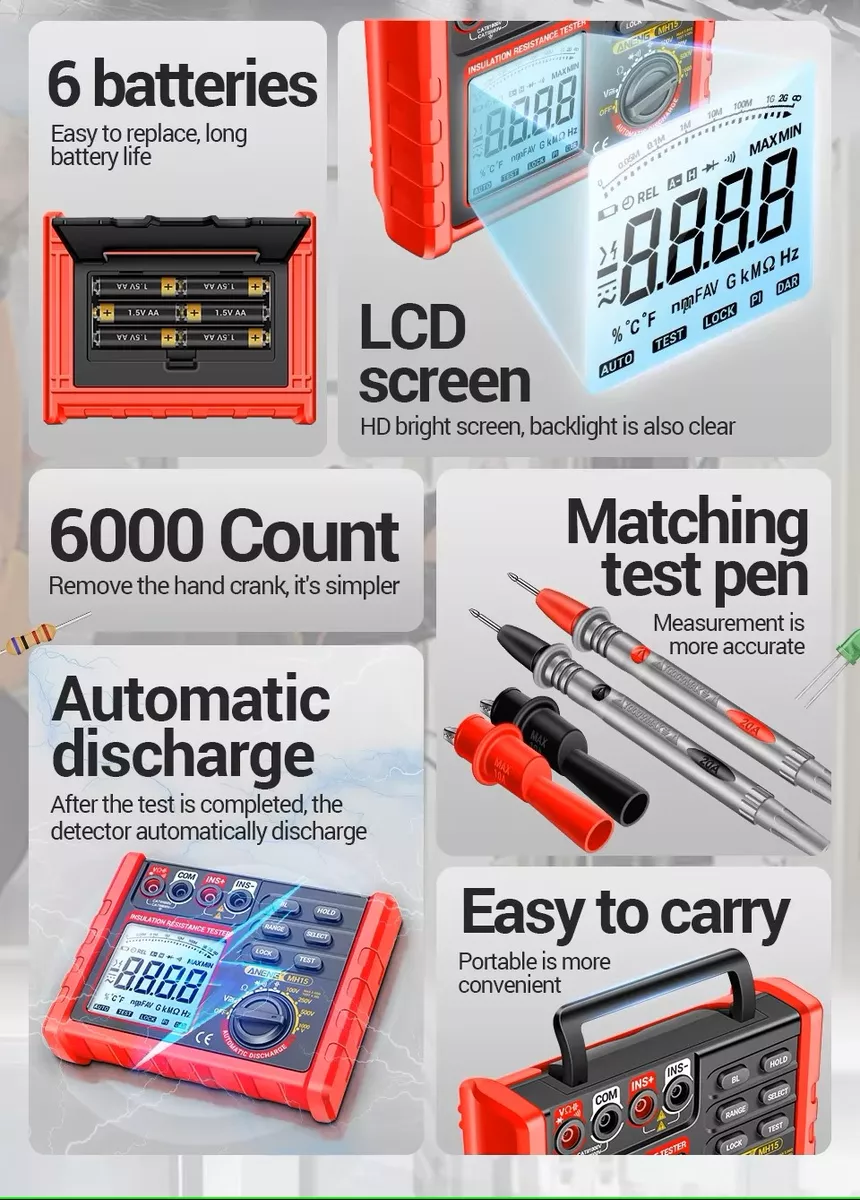

Insert the 6 AA 1.5 V batteries into the meter (NOT INCLUDED)
Select the appropriate measuring range (AC voltage, DC, insulation resistance, diode).
Connect the probes to the terminals of the device to be measured.
Read the results on the LCD digital display.
After the measurement, the meter switches off automatically after 15 minutes without operation.
The ANENG MH15 is ideal for electricians, technicians and professionals who need to perform insulation resistance tests on electrical systems, ensuring accurate and reliable measurements with a rugged, easy-to-use tool.
