Description

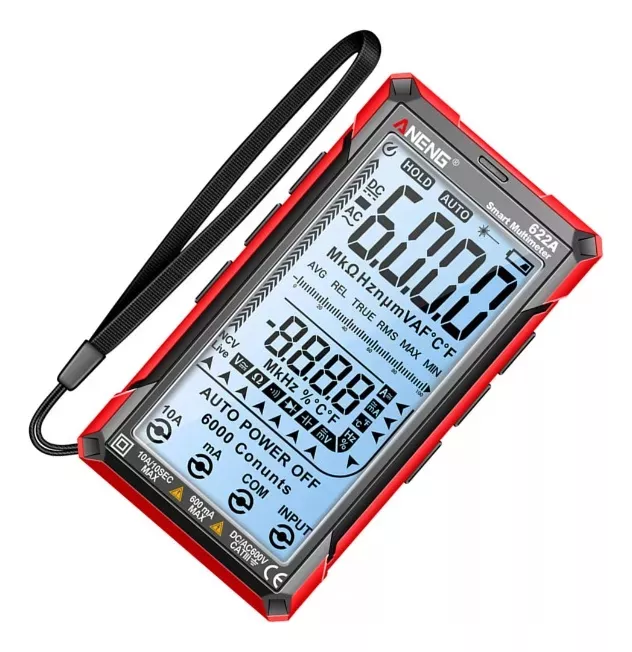

ANENG 622A Digital Multimeter – Innovation, Precision and Versatility
The ANENG 622A is a digital multimeter designed for those looking for a reliable and efficient tool to perform electrical measurements.
This device combines a compact and portable design with a wide range of features, ideal for both professionals and hobbyists. Its clear, backlit display makes it easy to read in any condition, and its durability ensures long-lasting performance.
Overview
The ANENG 622A allows for high-precision voltage, current, resistance, and frequency measurements. Its advanced technology includes automatic functions that simplify use and overload protections, ensuring safe and stable measurements with each use.
Technical Data
Sheet Power types: AAA Battery (NOT included)
Screen type: High visibility backlit LCD.
Maximum AC voltage: 750 V.
Maximum DC voltage: 1000 V.
Maximum AC current: 10 A.
Maximum DC current: 10 A.
Maximum frequency: 10 MHz.
Maximum resistance: 60 MegaOhms
Height: 150 mm.
Width: 75 mm.
Length: 40 mm.
Weight: 210 g.
It is waterproof: No.
Additional Specifications
Data hold function to keep values on screen.
Overload protection in all measurement modes.
Automatic shut-off for energy saving.
Manual or automatic range selection.
Low battery indicator to prevent interruptions.
Impact-resistant housing that extends its lifespan.
How to Use
Power on: Insert the AAA batteries and turn on the multimeter with the corresponding button.
Settings: Select the desired function (voltage, current, resistance, etc.) using the rotary selector.
Measurement: Connect the probes to the circuit or device to be measured.
Display: Read the result on the backlit LCD screen.
Power off: Turn off the device and store it in a safe place.
Package Contents
1 ANENG 622A Digital Multimeter.
1 Set of test tips.
1 User Manual
With the ANENG 622A, you get the perfect tool to work safely and accurately on your electrical and electronic projects. Don’t wait any longer to improve your work team!
