Description

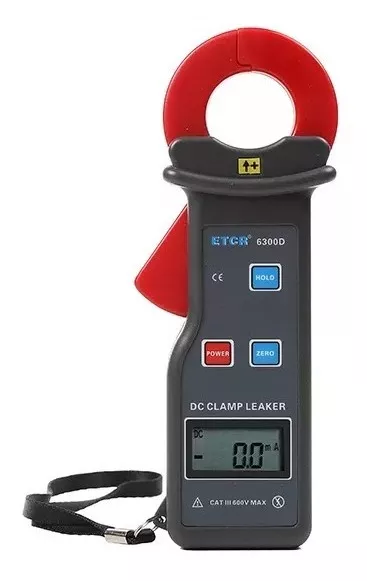

DC ETCR6300D
Clamp Leakage Current Meter Main Product
Function 1. DC current measurement, leakage current, range 0. 0ma6.0a
2. Data storage: 99 groups
3. Peak
fastening 4. Line Voltage: below 600V
5. CT size: 25mm x 30mm
ETCR6300D DC leakage current clamp meter suitable for measuring DC current and leakage current below 600V, range: ~6.0A 0.0mA, CT size: 25mm x 30mm, the iron core adopts magnetic shielding technology, almost unaffected by external magnetic field, strong anti-interference ability. Especially suitable for high-precision small current measurement, it adopts non-contact current measurement, safe and simple operation. The instrument is small in size, high precision, stable performance and perfect function, which is one of the necessary tools for electrician safety inspection and maintenance.
The instrument with data retention, data storage and other functions, can store 99 groups of data, The instrument connects the computer by RS232 interface, the storage data can be uploaded to the computer, easy to read, analyze, save, print, etc.
Function
DC leakage current, DC current and car leakage maintenance.
6LR61 9V Power
Supply(Battery not included)
Test
Mode CT Clamp, Magnetic Modulation
CT
Size 25mm x 30mm
Range
0.0mA6.00A DC
Accuracy 23+- 3, Below 70% RH
Range 0.0ma300.0mA; Resolution 0.1ma; Accuracy ± 2% rdg ± 5dgt
Range 0.30to 6.00a; Resolution 0.01a; Accuracy ± 2% rdg ± 5dgt
Shielding
Double-layer shielding, strong anti-interference ability
Display Mode
4-digit LCD display
Meter
dimensions 175mm (length) × 70mm (width) × 38mm (height)
LCD
dimensions: 35mm × 21.5mm, viewing area: 32mm × 15mm
Sample
rate Approximately 2 times/s
Range
change 0.0mA – 6.00A AC changes automatically
Zero
cleaning function Yes, before testing, press the zero key to clear to zero
Polar
indication Automatic identification, displays the “-” symbol
Cable
position The cable tested in the center of the clamp jaw
Line Voltage
Line Measurement Below DC 600V
USB
Interface With USB interface, storage data can be uploaded to computer, software monitoring
Data storage
99 units, displayFULL symbol indicates full storage
Peak
Stand Peak capture and hold function, hold down the hold key and do not release, can display the maximum value in the measurement.
Data
Retention Data Hold Function: Display of DH Symbols
Overflow
Display Measure Range Overflow Function Exceed: OL Symbol Display
Automatic
shut-off 5 minutes after turning on, the meter turns off automatically without any operation to reduce battery consumption
Battery
Voltage While the battery voltage decreases to around 7.2V, it will display the battery’s low voltage symbol “”, and it will remember to replace the battery
Weight
Meter 210g
Operating
current 20mA
Working temperature-10
~50, below 80% rh
Temperature
Error Limit-100 and 4050, maximum error increase is 2% rdg
Storage temperature-10
~60, below 80% rh
Ac3700 V/rms insulating resistor
(between core and outer shell)
Suitable
safety standard IEC1010-1IEC1010-2-032pollution, etc 2CAT(600V)
