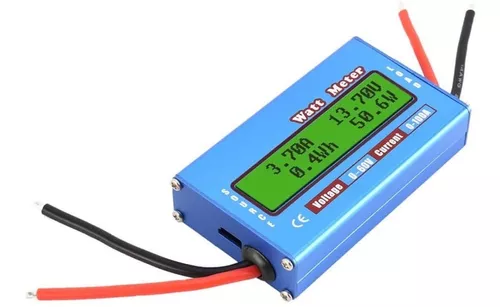

Description
Main features:
-The digital LCD screen offers clear and crisp numerical readings.
-Supports up to 100 amps intermittently and 50 amps in continuous service.
-Connecting the charging end to the battery provides a real-time battery charge reading.
-Extremely low power consumption of 7 mA. More efficient than any LED meter.
-Measure energy (wh), load (ah), power (w), current (A) and voltage (V).
-Accurate and precise resolutions of 0.01 A current and 0.01 V voltage.
-Measures peak amps, peak watts (except Doc Wattson), and minimum voltage (sag).
-Rugged- handles 50A continuous and 100A peak at 60V.
-It acts like a cable, so it does not affect the performance of the model. Precision Alu-Chrom current sensing resistor, with only 0.001 ohms of resistance and circuits that draw only 7 m-Uses
DSP to increase ADC resolution and differential measurement amplifiers to increase noise immunity.
Specifications:
-Voltage: (0) V-4V-60V 0.01V (Resolution).
-Current: 0-100 A peak 0.01A (Resolution).
-Power: 0-6554 W 0.1W (Resolution).
-Load: 0-65 Ah 0.001Ah (Resolution).
-Power: 0-6554 wh 0.1 Wh (Resolution).
-Measurement update period: 400 mS.
-Signal sampling rate: sample/s-Data
queue sequence time: 2 seconds.
-Circuit resistance: 0.001 ohms.
-Operating current: 7 mA.
-Auxiliary Power Voltage: 4.0V ~ 60V-Size
: 8.3 x 4.7 x 2cm / 3.27 x 1.85 x 0.79 inches
